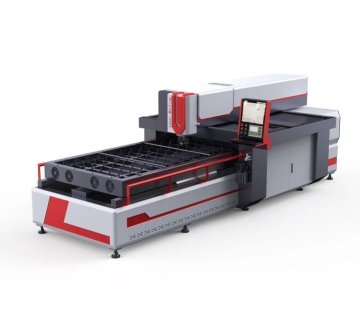

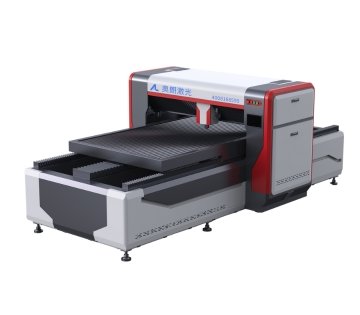

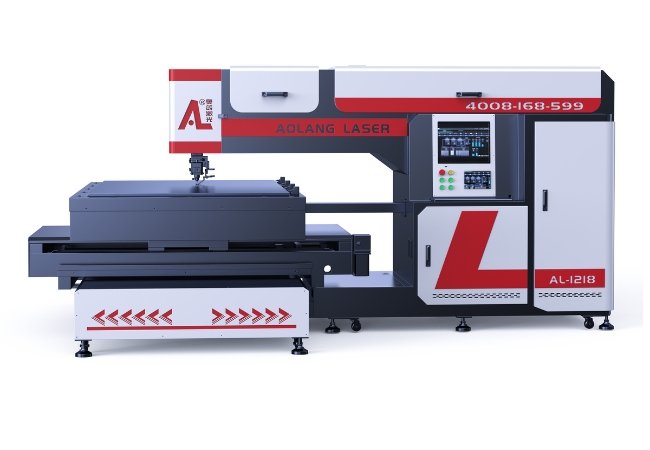

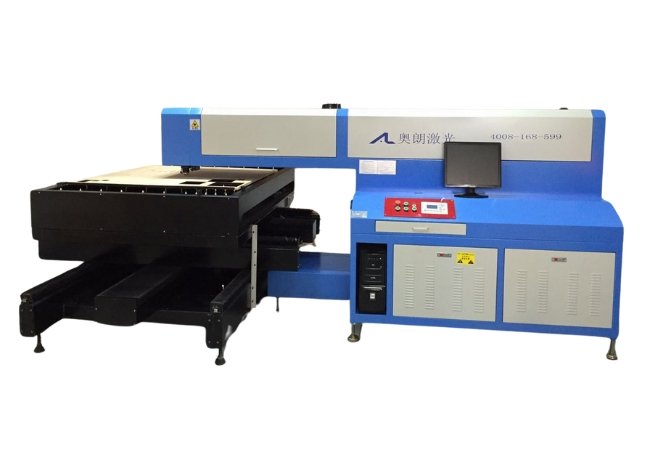

Laser die cutting machine with cross tables
The core concept of this machine design is to be able to keep the laser path fixed and then you get the following benefits:
- No need to frequently adjust the laser path and laser spot
- To ensure Every cut on the die board is even and uniform
- Fixed laser path means fewer mirrors and more cost savings
- Dust, smoke environment have less influence on the laser path
Fixed laser path

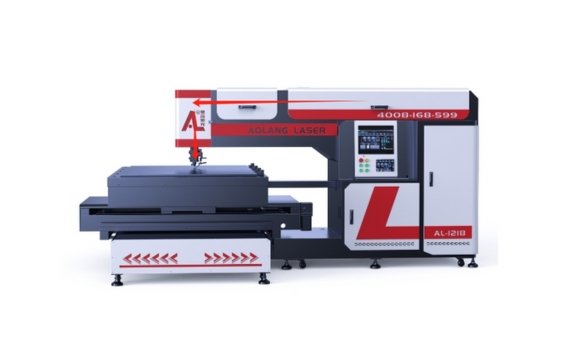

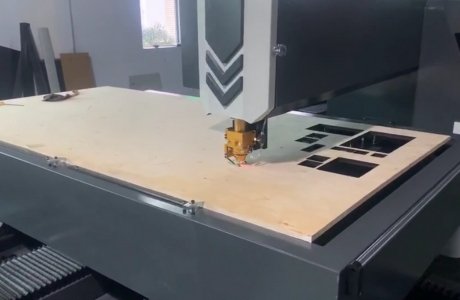

Cross tables laser die cutting machine adopts fixed laser path design. The whole machine has only one reflector, minimizing the laser path. So the laser transmission path is almost fixed, avoiding the deviation caused by the vibration of the reflector parts and the movement of the laser head.
In addition, the biggest benefit of a fixed laser path is that the laser power is the same because just the table is moving, which ensures that the cutting slits are uniform on every part of the working table, front, back, left and right all the same.
Automatic focusing laser head
Many of the tradition laser die cutting machine models on the market used a manual focus laser head, which needs to be adjusted by twisting a nut in order to adjust the height of the laser head to adapt the focus, which then enables cutting different die seams.

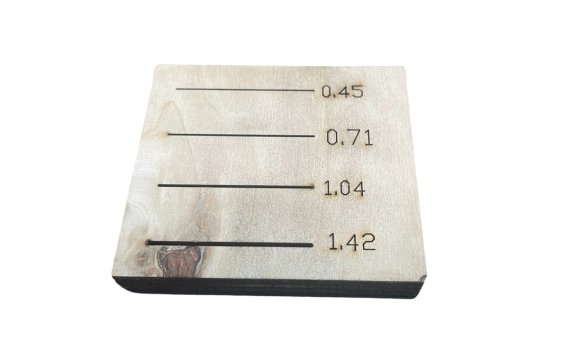

AOLANG LASER cross table laser die cutting machine adopts auto focus laser head. You just set the focus height in the control system, the laser head will lift up and down through sensors to cut different knife seam specifications like 1pt, 2pt, 3pt.
- Data sheet
| Cross table laser die cutting machine | |||
| Machine Model | AL-1218-450C | AL-1218-600C | AL-1218-800C |
| Working Area | 1220×1800mm | ||
| Laser Power | Fully Enclosed Co2 Laser Tube 450W | Fully Enclosed Co2 Laser Tube 600W | Fully Enclosed Co2 Laser Tube 800W |
| Laser Head | Autofocus laser head(can cut 1pt 2pt 3pt at the same board) | ||
| Cutting Speed(18mm die board) | 38M/Hour | 45M/Hour | 50M/Hour |
| Cutting thickenss | 1-25mm Plywood die board | ||
| Laser Path | Fixed Laser Path | ||
| Transmission System | Ball Screw Drive with Servo Motors | ||
| Control System | Aolang laser developed PA system | ||
| RAM（Random Access Memory) | 32GB Supports Offline | ||
| Power supply | 220V/50HZ 10A | ||
| Repeated Positioning Accuracy | ±0.05mm | ||
| Cooling Type | Water Cooling(Pure water, antifreeze in the winter) | ||
| Assisted Gas of the Laser Head | Compressed air (0.4-0.8Mpa) | ||
| Assisted Gas of the Laser Source | No need | ||
| Graphic Format Supported | CAD; PLT; CDR; AI;Etc | ||
What guarantees you can get if buy the cross table laser die cutting machine from Aolang
If you buy AOLANG’s cross table laser die cutting machine, we will send engineers to provide door-to-door installation service. Of course, we will charge the engineer’s salary and service cost accordingly. If you have a professional engineer to install the machine by yourself, we will not charge the installation service fee and the engineer’s salary. However, we will provide unlimited on-line installation guide service, you can make sure the machine can be installed and your workers can learn well how to use the laser die cutting machine.
In addition, we also offer the following warranty policies and services with each of our laser die cutting machines.
- Whole machine with 1 year warranty.If the machine break down within the warranty time,we will replace a new any of the parts for you.
- After one year warranty time,we will also provide free technical consulting services and guide your machine user to maintain the machine .
This machine has a fixed footprint of 3000 x 3200mm, but because it is a tables moving design and requires a reserved space. So we recommend that your die-making shop’s area should ideally be larger than 5000 x 5000mm.
- Total electric power consumption about 5.5KW(600W laser tube)
- Pure water for the water chiller should be replaced per month
- Laser tube (theory lifetime is about 1.5-2 Years)
- Focus lens,and reflective mirror to be replaced after failure
Usually the standard production time is 20 days. But if the model you are gonna buy we have some semi-finished machines in stock, then we can deliver within 10 days. So please call us or ask for stock conditions.

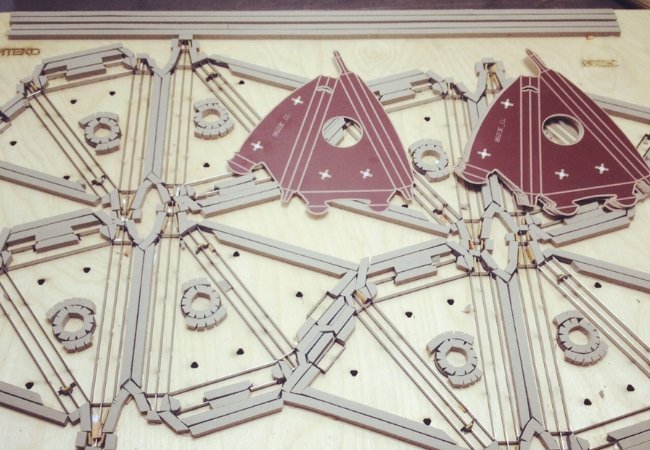

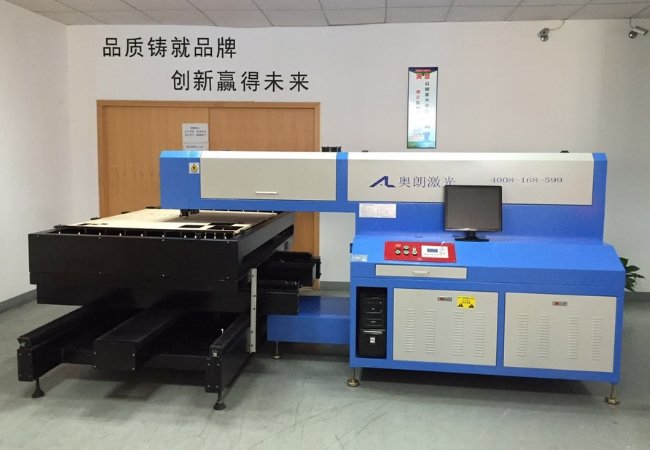

Cross table laser die cutting machine was specifically designed for the wood dies making industry. If you are a owner of a die shop or if you are a factory in the printing industry and need to use the wood dies for printing box,sticker label cutting, you can buy this machine and make the wood dies by yourself.
