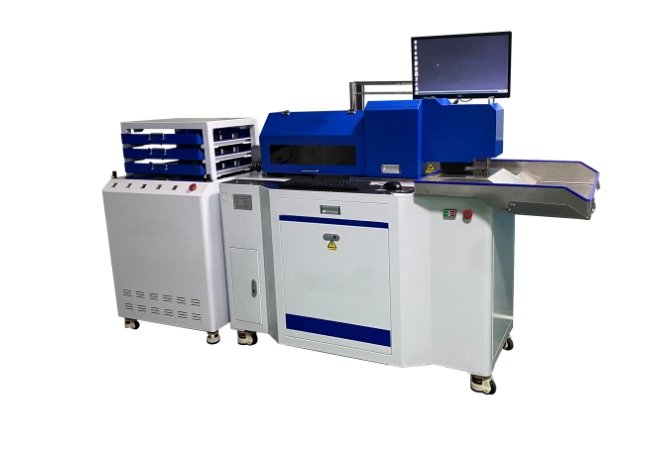

AL-52CN PRO Die Blade Bending Machine
This model is an upgraded model of AL-52CN, for those die-maker who need nicking and broaching function. If you need more advanced function, you can buy it.

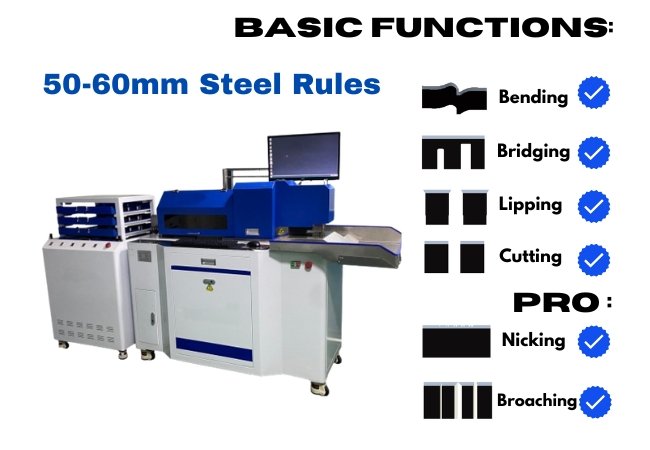

- Blade elevator with 6 layers and you up or down any layer you wanna use
- Advanced model with optional nicking and broaching features
- More favored for high blade work, more powerful, 60mm blades match
- Upgraded high power motors to ensure die blade feeding and bending efficiency

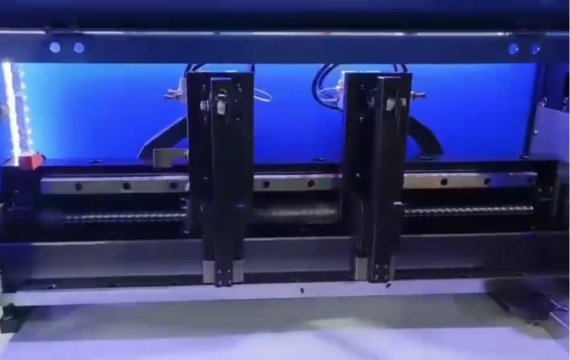

High precision grade guide rail and screw rod
Linear guides and ball screws are adopted from the world’s top 3 brand Taiwan Hiwin. For precision die blade feeding and transmission. The precision reaches micron level, which guarantees that the feeding precision of the coil die blade is ±0.02mm. The high transfer precision guarantees the bending and molding precision. If also buy our high precision 600W laser die cutting machine together, then they can perfectly ensure the precision of the wood cutting dies when the blade is mounted.
Moreover, the feeding adopts double clamping and pushing structure, which makes the coil blade feeding more efficient. And it is also convenient to manually return the blade and change the blade coil when it is needed.

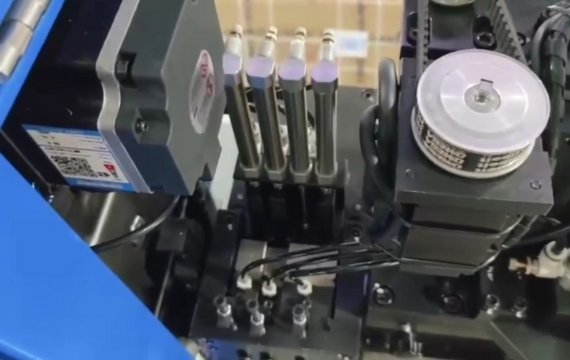

Modular design of the machine functions
Either our AL-52CN or AL52CN PRO includes four standard customizable function working stations, which generally come standard with Pre straight cut, lipping, 6mm bridging, and 8mm bridaging. If you need to punch holes, or do perforations. You can replace two of the standard functions with perforation and hole puching.
The nicking and broaching functions are located at two other separated working stations. You can remove or add the nicking and broaching functions at will before you confirm the machine order from us.

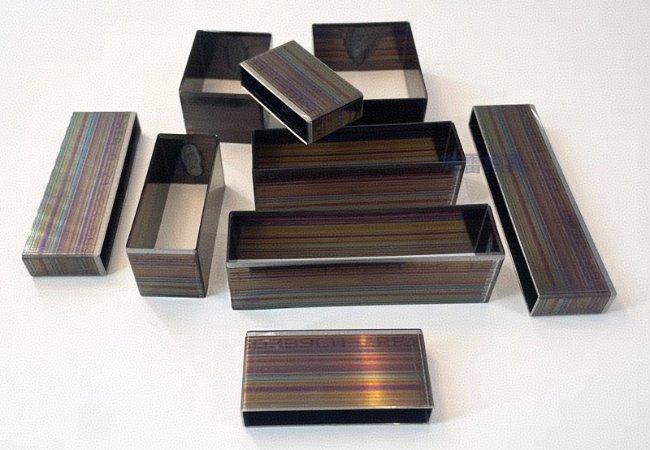

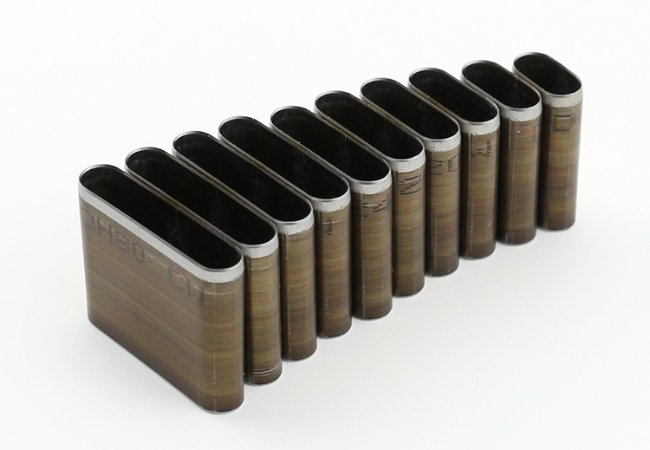

23.8-60mm 2pt-3pt blades match,23.8 4pt also match

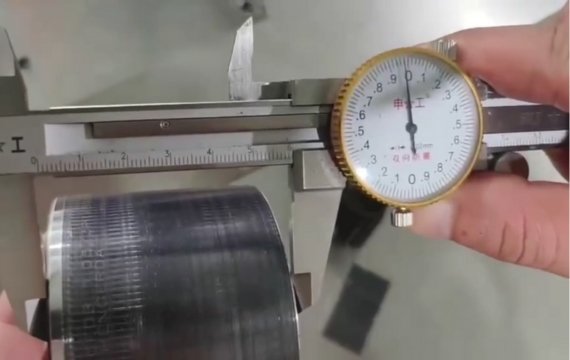

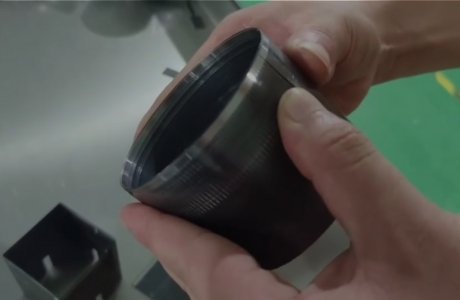

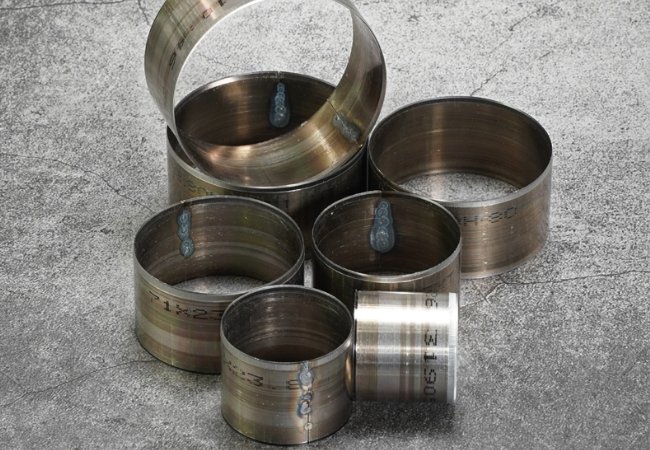

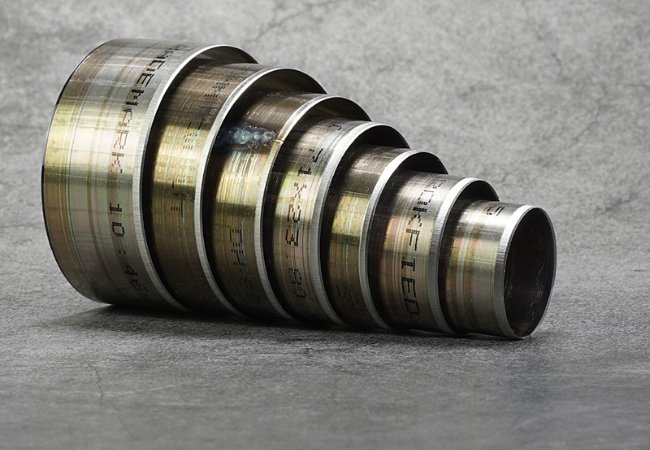

It is well known that some special industries, such as pearl cotton, EVA liner, thicker composite materials, etc. all need to use higher die blades, such as 50mm, 60mmm height. But the blade is higher, the hardness increases, not easy to be bending,forming and cutting.
We overcome this problem by upgrading the motor and bending torque, and reinforcing the bending molds so that the molds are not easy to wear.
- Data sheet
| AL-52CN PRO die blade bending machine | |
| Machine Model | AL-52CN PRO |
| Blade (thickness) | 0.71-1.05mm-1.42mm(2pt 3pt 4pt) |
| Blade (height) | 23.8mm-60mm(common size like 50mm,60mm) |
| Max Bending R | 100° |
| Min R in 90° | 2 |
| Min U shape bending size | 5mm |
| Minimum bending size on front/back | 2-3mm depends on the blade thickness |
| Standard functions | Cutting,bending,bridging,lipping,nicking,and broaching |
| Blade feeding accuracy | ±0.02mm |
| Bending Flatness | 0.1/100mm |
| The way of cut | Bending and Cutting at one Rotary Rod |
| Gas supported | 0.6-0.8Mpa compressor air |
| Voltage and Frequency | AC 220V 50Hz |
| Gross Power | 3.5 KW |
| Machine Size and Weight | 230CM*75CM*165CM 560KG |
| The best graphics formats | dxf.ai.dwg format |

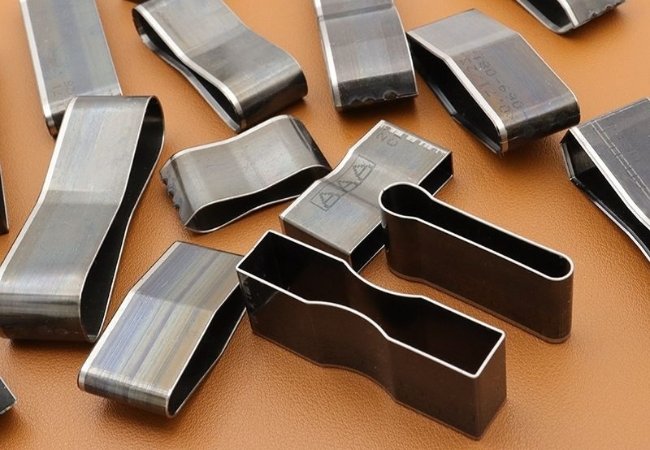

A die blade bending machine with automatic broaching function.
This type of machine has become the standard for high-end and top class die-making, and is especially suited for applications that require micron-level accuracy and complex 3D molding scenarios (e.g., medical catheter cutting dies, aerospace composite cutting dies).
The advantage of broaching is that the possibility of angular shaping of the die blade is greatly enhanced. Common automatic steel rule bending machines have a minimum bending radius of about 1mm R. After broaching, the minimum bending radius can be 0.1mm R or even less. In addition, if you make more precise and complex graphics of cutting dies, the angle of the blade forming requirements will be very high. Generally the ordinary bending machine bending angle of a maximum of only 100 °. But after broaching process the bending angle can be a maximum of about 150 °.
If you want to buy this kind of bending machine with broaching, we will have some suggestions as follows.
- When choosing a model should focus on evaluating the compatibility of die blade thickness and height matches the machine or not?
- What is your exist die-making order status to ensure the input-output ratio after the initial investment in this bending machine with broaching.
Yes，it’s easy. Just delete nicking keep broaching or delete broaching keep nicking. The advantages of modular design are here.
Before purchasing this machine please talk to our technical team about the thickness, height and type of blade you are daily using and other blade technical data such as long bevel or short bevel and what is the bevel degree.
1. 3.5KW 16A peak power consumption
2. A 0.6-0.8Mpa air compressor needed to support the machine working.
Other than this, there is no need for any other consumables for daily use.
