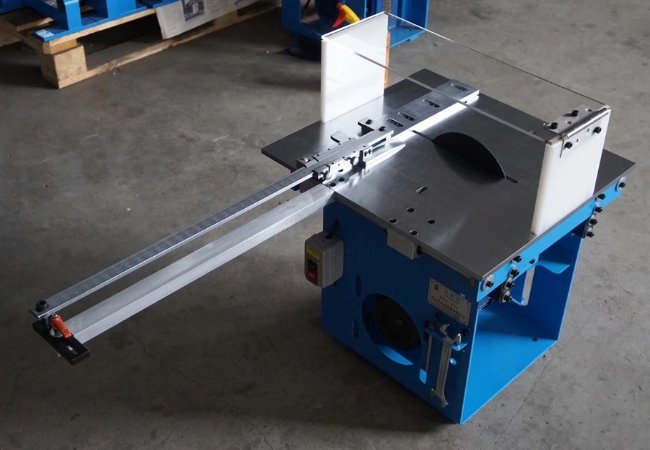

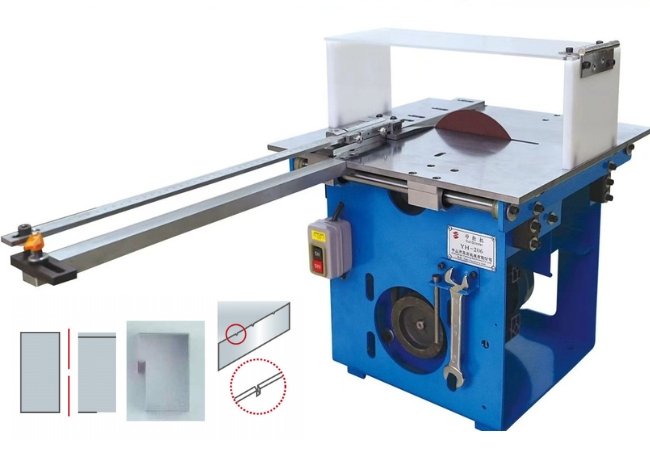

Electric Grinding Machine for Steel Rule Cutting and Nicking Model: AL-206
If you typically use thicker blades for die-making, such as 1.42 mm or 2 mm, this electric griThe grinder has a sturdy structure and a tabletop made of 1 cm thick polished 304 stainless steel.nder is highly recommended.
- Equipped with an energy-saving motor, it has low power consumption with a total power of only 370W, but can reach a speed of 1440RPM.
- The grinder has a sturdy body structure and a tabletop made of 10mm thick polished 304 stainless steel.
- It is equipped with a measuring scale to help you control the length of the steel rule you cut. No additional measurements are required.
- This device is electrically drived. To ensure safe use and prevent accidents, we have installed protective covers for it.

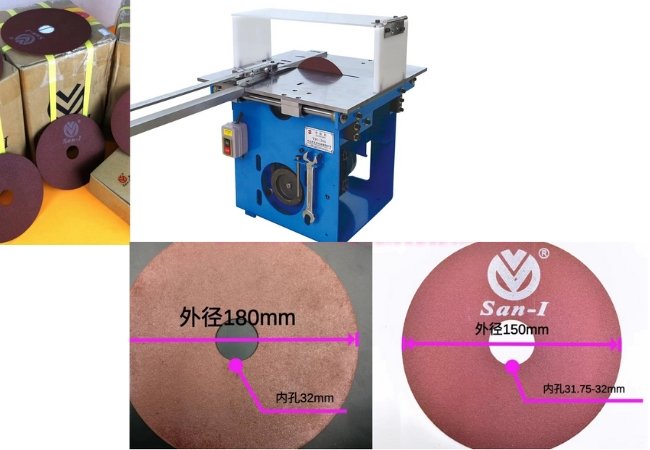

- You can change different diameter grinding wheels to match different steel rule heights, and different grinding wheel thickness match for nicking widths.
- Datasheet
| Electric grinding machine for steel rule cutting | |
| Model | AL-206 |
| Supported Rule Thickness | 0.45mm(1pt)-0.71mm(2pt)-1.07mm(3pt)-1.42mm(4pt)-2mm |
| Supported Rule Height | 8mm-100mm |
| Standard function | Cutting,Nicking |
| Power supply | 220V/380V 50Hz |
| Total power | 370W |
| Motor max RPM | 1440 RPM |
| Machine Size | 890x470x620mm |
| Package Size | 490×480×510mm(machine) 720×250×130mm(parts) |
| Net Weight | 67KG |
| Gross Weight | 80KG |
Die-Making Related Products
Electric grinding machines are mainly used for steel rule cutting in die-making, and include two aspects.

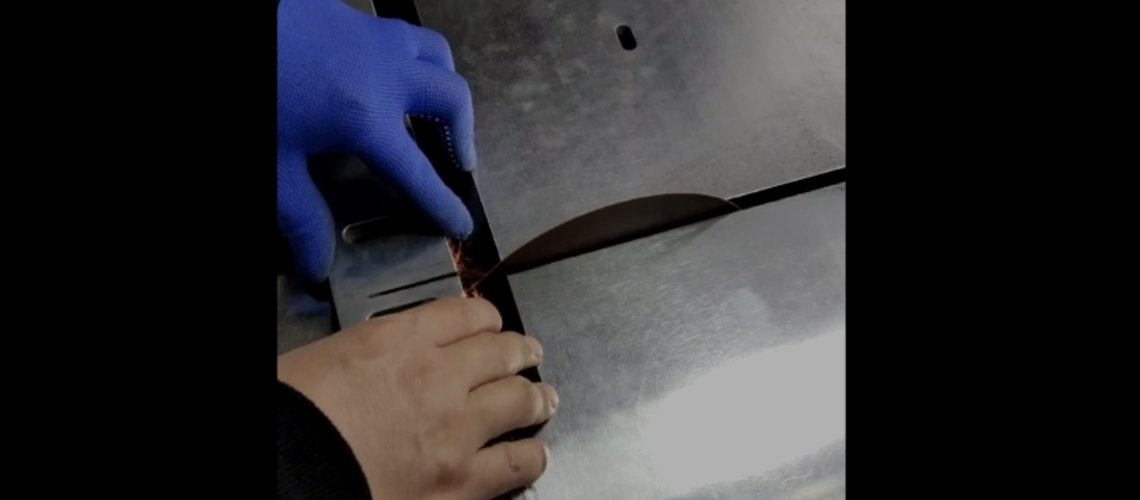

- On one hand, it is used for cutting steel rules. Cutting dies are typically composed of steel rules and mounting boards. The steel rules usually made of steel with high hardness. Grinding machines can utilize their high-speed rotating grinding wheels to cut the steel rules of die boards; Both straight steel rules and rotating steel rules work effectively. For example, when manufacturing rotary cutting dies, grinding machines can follow a pre-set rotary dies drawing to cut rotation steel rules to match the desired circular shape. The sharp edges of the grinding wheel and the cutting force generated by its high-speed rotation can precisely remove excess material, ensuring that the rotary steel rule dimensions meet design specifications.
- For the dies-making with more complex functions, electric grinding machines also play a significant role. For example, when designing packaging boxes or brochures that require half-cuts or easy-tear features, we need to do nicking on the steel rule. Then we can replace a high-precision grinding . You can do nicking anywhere on the steel rules.
