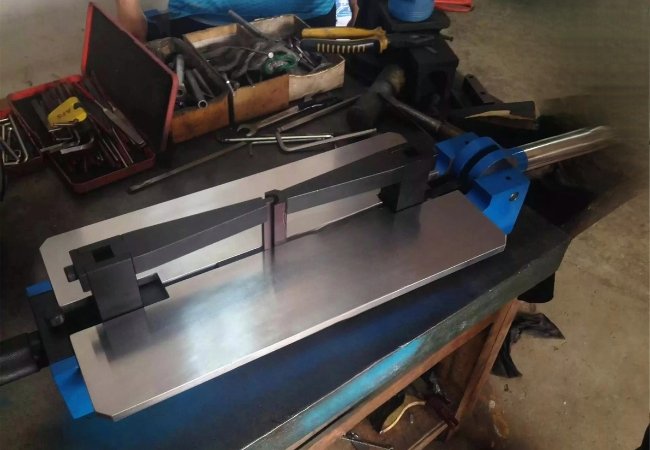

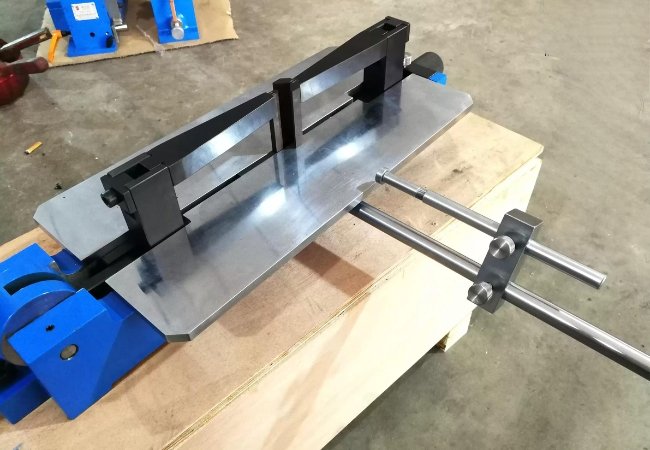

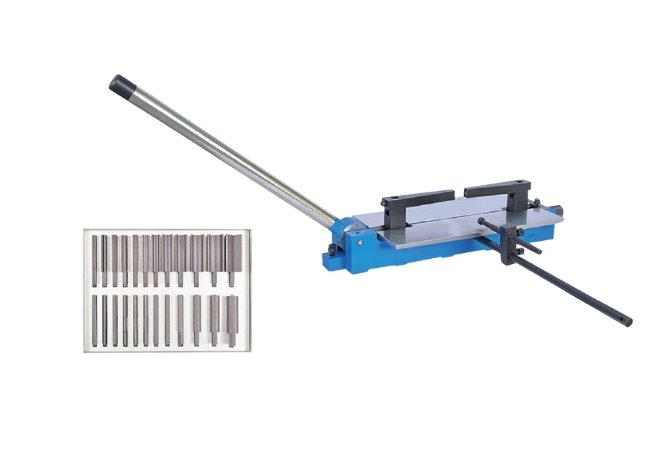

European Type Manual Steel Rule Bender Model: AL-207
- Compared with standard manual bending machines, European-style bending machines use upper and lower ends to support the mold. This can ensure that the mold is subjected to uniform force, which helps to improve bending accuracy.

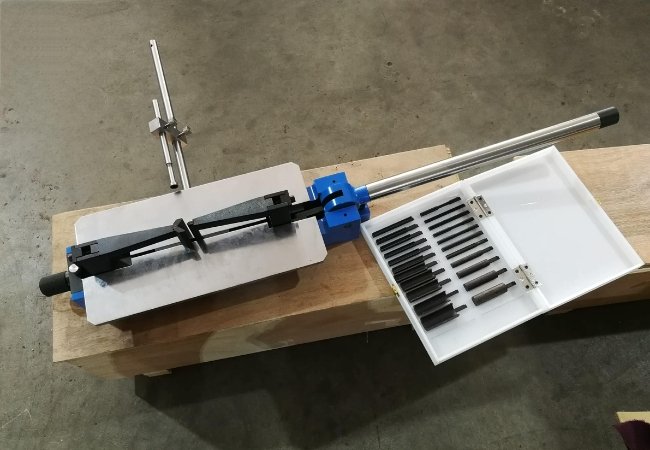

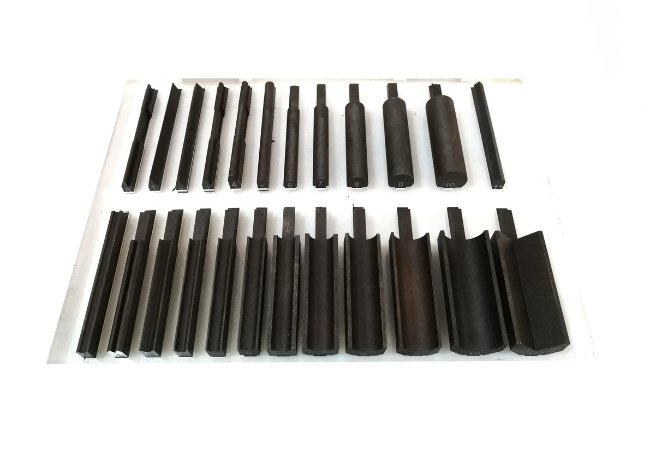

- A total of 24 molds will come with the manual steel rule bender. Each mold was designed based on various angles and curvatures commonly used in die-making industry. It with male and female molds matched in pairs, totaling 12 pairs.
- The mold structure with upper and lower supports also allows this manual bender can be customized for higher molds, such as 50 mm, 60 mm, 80 mm, 100 mm, etc., This way make it to match different steel rule heights.
- To ensure the precision of all manual die-making tools, we purchased two CNC precise machining centers. All manual benders’ molds and tools’ structures are machined.This way make it better precision rather than iron cast like other suppliers do.
- Datasheet
| European type manual steel rule bender | |
| Model | AL-207 |
| Supported Rule Thickness | 0.45-0.71-1.05-1.42mm(1pt 2pt 3pt 4pt) |
| Supported Rule Height | 8-100mm |
| Standard function | Steel rule bending |
| Tools Quantity(molds) | 24 pcs |
| Machine Size | 750x650x230mm |
| Package Size | 790x290x270mm |
| Net Weight | 32KG |
| Gross Weight | 39KG |
| Installation Method | Screwed to workbench |
Die-Making Related Products
New Die-Making Manual Tools
Some other features of European type precision manual steel rule benders.
1. The entire bender body and molds are made of alloy materials and formed using a CNC machining center.It ensures high structural strength and maintaining the bender’s high precision and stability. Compared to conventional cast iron machine bodies, the alloy body exhibits superior resistance to deformation. The machine body remains rust-free and maintains its precision even after prolonged use. All molds undergo quenching and hardening treatment, resulting in over 50% improved wear resistance and durability.
2. The machine adopts a modular design, enabling efficient and flexible operation. All molds are put-and-play, allowing for quick and easy replacement. Additionally, the same bender base can put different heights of molds to accommodate various blade specifications, such as 80mm, 100mm, etc. The lever-style handle design is ergonomically optimized, making manual operation effortless.
3. This European type steel rule manual bender has a wide range of applications. On one hand, it is compatible with various types of die steel rules and die creases&lines, as well as different thicknesses and heights. On the other hand, it possesses the capability to form complex shapes. Through segmented bending, it can create complex die blade contours such as arcs, right angles, sharp angles, and wavy shapes, meeting the requirements for die-cutting irregularly shaped packaging.
