Horizontal Manual Steel Rule Bridging Machine Model: AL-217

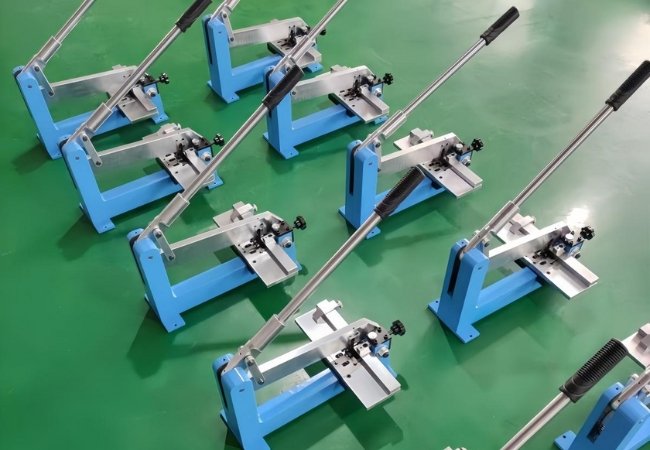

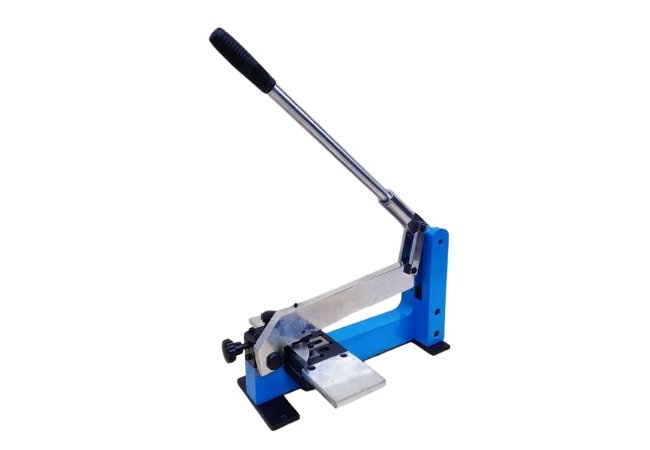

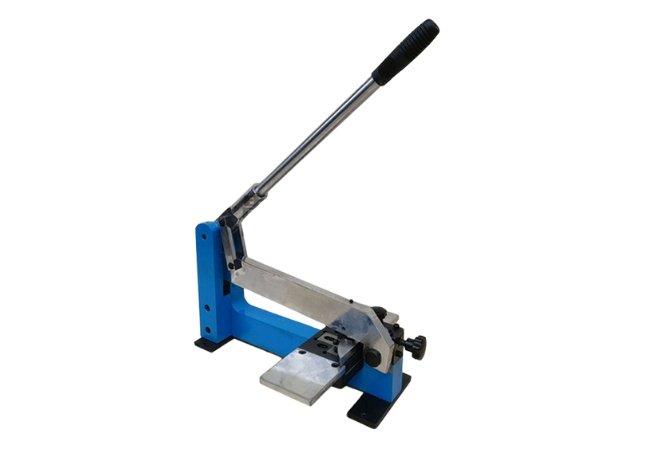

Horizontal manual steel rule bridging machine has become the most popular bridge punching tool today because it has the following features,
- The steel rule placement surface can be customized to match standard 23.8 mm height steel rules, or customized to match non-standard steel rules such as 50, 60, and 100 mm.
- Horizontal structure punching molds have a larger force-bearing area, and the maximum thickness of the punching bridge steel rule can be up to 4PT.

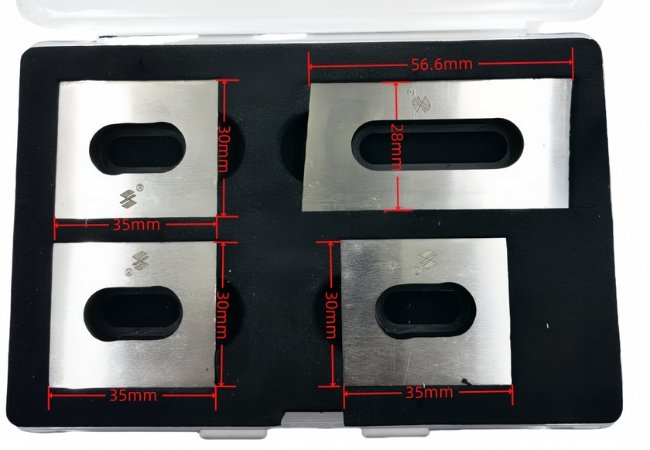

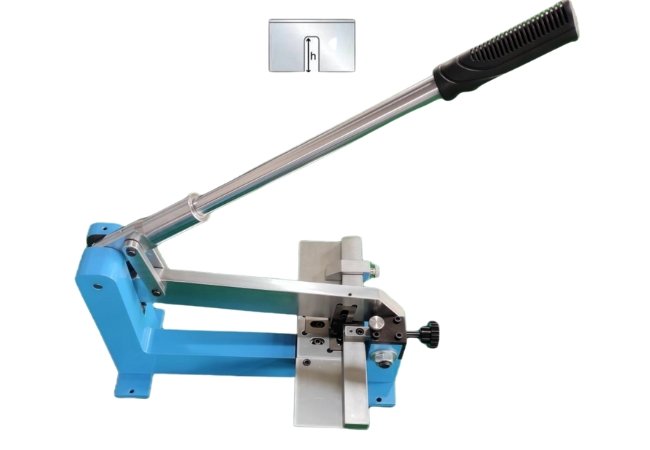

- Punching molds can be customized, with bridge widths available in 3mm, 5mm, and 9mm. The bridge height can also be manually adjusted between 5mm and 20mm.
- This horizontal manual steel rule bridging machine can not only punch the bridges of regular straight steel rules, but also punch the bridges of rotary dies’ steel rules.
- Datasheet
| Horizontal manual steel rule bridging machine | |
| Model | AL-217 |
| Supported Rule Thickness | 0.45mm(1pt)-0.71mm(2pt)-1.07mm(3pt)-1.42mm(4pt) |
| Supported Rule Height | 8mm-100mm(customized) |
| Standard function | Bridging cutting |
| Bridging Width | Bridging width 3-5-9mm customziable |
| Bridging Height | 5-20mm Manual adjustable |
| Machine Size | 600x320x300mm |
| Package Size | 640x370x350mm |
| Net Weight | 29KG |
| Gross Weight | 35KG |
| Installation Method | Screwed to workbench |
Die-Making Related Products
New Die-Making Manual Tools
If I usually use 50mm, 60mm, or 100mm height steel rules, does this Horizontal manual steel rule bridging tool work?

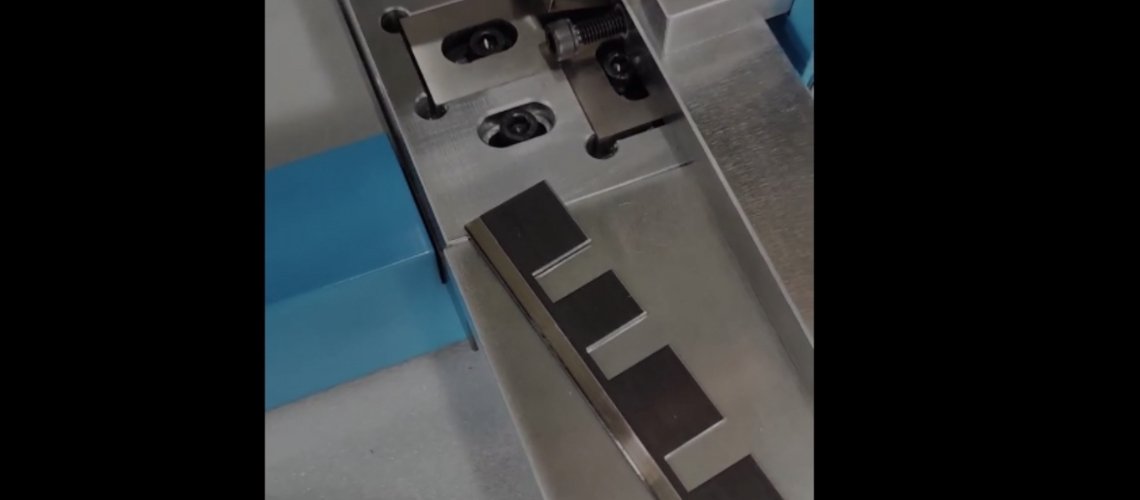

The biggest advantage of horizontal bridge machines is their high degree of customization. The steel rule placement surface can be customized, and the width of the punching mold can be customized. The height does not need to be customized but can be adjusted manually. If you regularly use steel rules with non-standard heights such as 50mm, 60mm, or 100mm, please contact our sales team to discuss your daily use steel rule height, the bridging width, and height you require. F or more details, please refer to the following video, which showcases a horizontal manual bridging machine we customized for a client he is using 60mm height steel rules.
