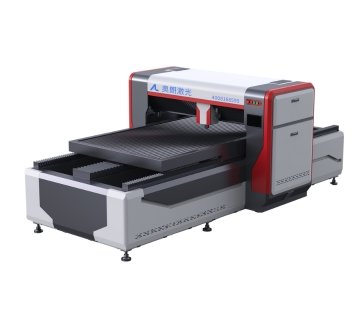

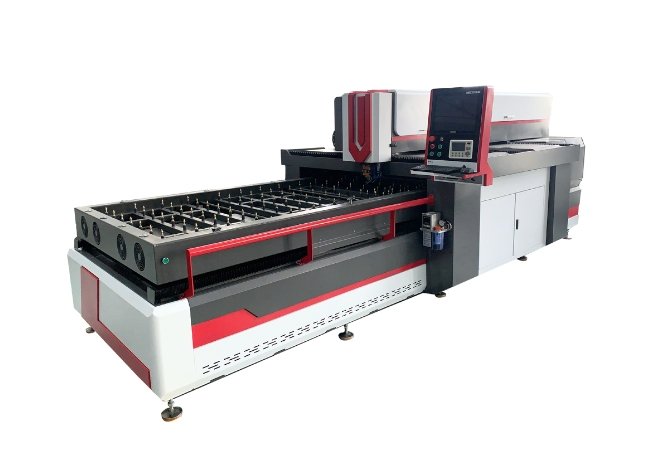

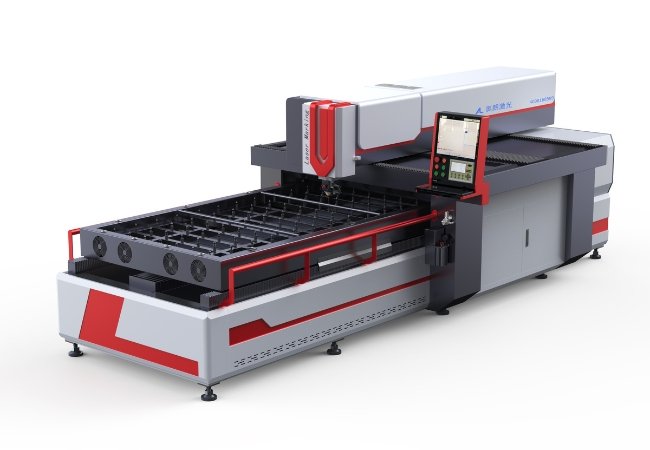

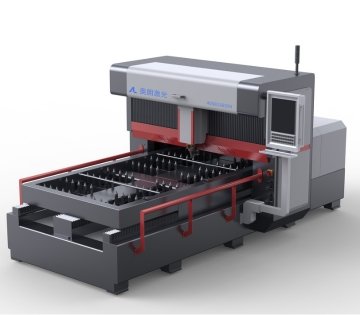

Fixed Laser Path Laser Die Cutter
450W 600W 800W laser power tubes optional
- The laser path is fixed and there is only one mirror, so the laser transmission structure is simple.
- Specifically designed for the wood die-cutting industry, the laser power is strong for 18 mm die board.
- Sturdy machine base, overall weight is about 30% higher than the competitor’s machine models.
- Free sample cutting test is available, whether you are overseas or in our factory, just send the drawing
More flexible laser source
A laser die cutting machine for wood with a totally enclosed CO2 laser tubes has become a popular choice for a new die-making business runner or small die shop owner . Because firstly, they can be flexibly replaced at the end of their service life without maintenance. Secondly, the laser tubes are relatively inexpensive, with much lower start-up costs than fast-axial-flow CO2 lasers.

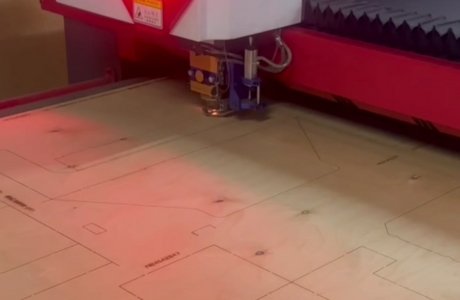

And it has enough laser energy to cut 18mm or 22mm standard common plywood die boards, cutting speed up to 50M/hour.

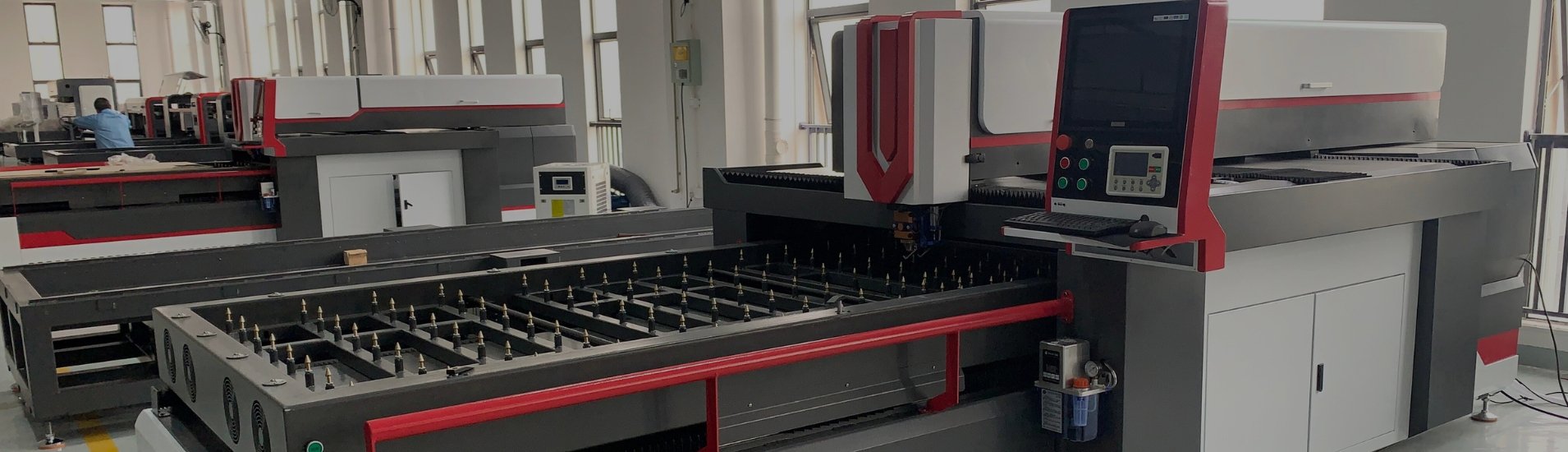

Fixed laser path design
Fixed laser path has the following advantages:

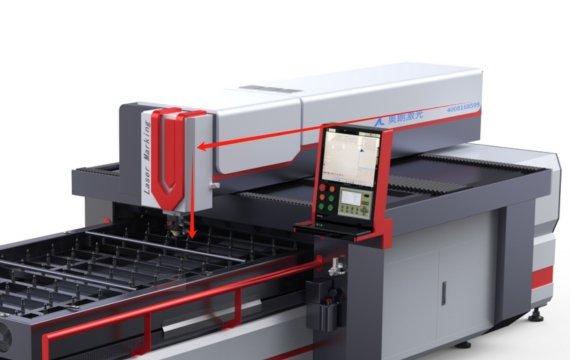

Fixed laser path structure has only one reflector lens so the laser light path is stable without the need for frequent adjustment. It rarely appears laser light path deviation, reducing the frequency of daily maintenance and machine adjustment work.
Fixed laser path design means that the laser optical path is permanently constant, which can make laser die cutting machine for wood keeping the laser energy concentrated. It can improve the accuracy of the die-cutting process and the uniformity of each cutting seam.

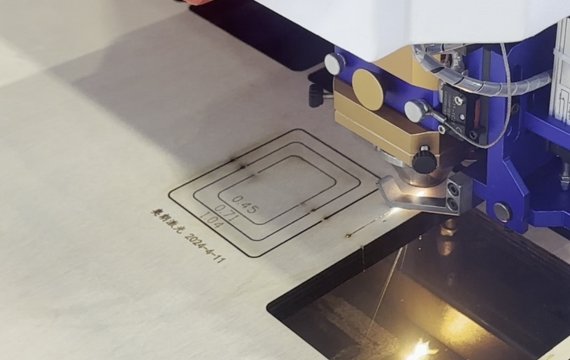

Auto-focus the 1PT,2PT and 3PT
Many competitors on the market are still using manual zoom laser and control system. When you change different thickness of the steel rules you need to manually adjust the height of the laser head to adapt to the different width of the laser cutting slit. This way is a waste of time and also affects the accuracy of the die board cutting process.
Aolang laser die cutting machine for wood come with the automatic laser head focus height adjustment system. You only need to set the different laser cutting slit’ widths you need in the application software. The machine will automatically adapt and cut different laser seams on the same plywood die board.

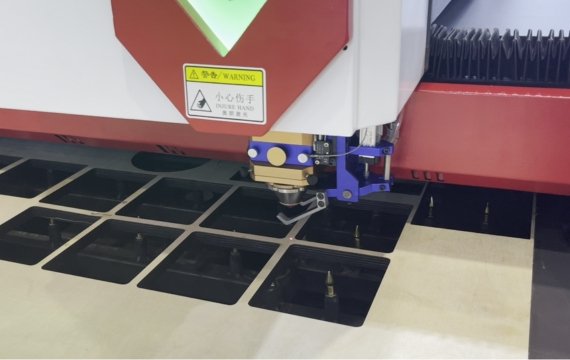

Anti-crash laser head
The laser head, as the core component of the laser die cutting machine, the price is high if replacing a new one . Therefore, as a user and owner of the machine, you will be worried about whether the laser head will be broken, because the possibility of the laser head falling off the wood die board during the cutting process is very high.
Aolang laser die cutting machine for wood adopts the latest technology of laser head with high precision sensors. When the laser head hits any foreign object or falls off the wood die board, the machine control system will automatically stop the machine to prevent the laser head from damage.
- Data sheet
| Laser Die Cutting Machine for Wood | |||
| Machine Model | AL-1325-450W | AL-1325-600W | AL-1325-800W |
| Working Area | 1220×2440mm | ||
| Laser Power | Fully Enclosed Co2 Laser Tube 450W | Fully Enclosed Co2 Laser Tube 600W | Fully Enclosed Co2 Laser Tube 800W |
| Laser Head | Autofocus laser head(can cut 1pt 2pt 3pt at the same board) | ||
| Cutting Speed(18mm die board) | 38M/Hour | 45M/Hour | 50M/Hour |
| Cutting thickenss | 1-25mm Plywood die board | ||
| Laser Path | Fixed Laser Path | ||
| Transmission System | Ball Screw Drive with Servo Motors | ||
| Control System | Aolang laser developed PA system | ||
| RAM（Random Access Memory) | 32GB Supports Offline | ||
| Power supply | 220V/50HZ 35-40A | ||
| Repeated Positioning Accuracy | ±0.05mm | ||
| Cooling Type | Water Cooling(Pure water, antifreeze in the winter) | ||
| Assisted Gas of the Laser Head | Compressed air (0.4-0.8Mpa) | ||
| Assisted Gas of the Laser Source | No need | ||
| Graphic Format Supported | CAD; PLT; CDR; AI;Etc | ||

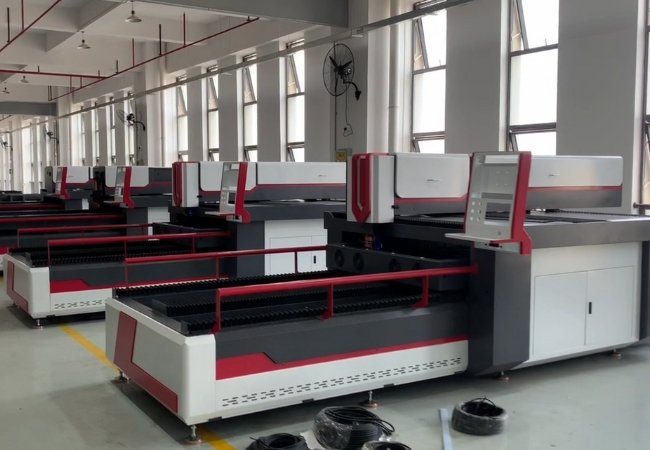

The first set of fixed laser path laser die cutting machine for wood on the market
Aolang’s team of engineers developed the Fixed Laser Path die cutting machine series in 2024 through market feedback and pain points in the die-making industry. After one year in 2025 the competitors in the market, such as JinCheng and TSD developed similar models through structural references.
Traditional medium-power laser die cutting machines are generally adopt two structures,
One is gantry type with flying laser path, another one is cross table type with fixed laser path. The weaknesses of both structures are very obvious. Gantry type machine need to frequently adjust the laser path and laser spot focus because of the flying light path. It’s a headache when you use it for die-cutting process .
Another one is crossing table type. Although it has the fixed laser path, but it need more floor space area , and the working size is generally 1200mm × 1800mm. If it made into 1300 × 2500mm working szie,it will be needed more large workshop area. Aolang’s new series of fixed llaser path models can be a perfect solution to these problems.
- More concentrated laser power
- Less workshop area needed
- For better die-making solution
We have different models with different laser power in this fixed laser path series laser die cutting machine for wood.
Please contact us for personal customized machine solution.
We will recommend right model with laser power according to your work capacity and daily dies you are making.
This machine matches standard size of plywood die board on the market 1220×2240mm (4×8ft)
And the thickness of the plywood can be 1-25mm all match.

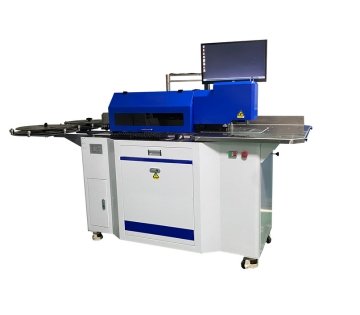

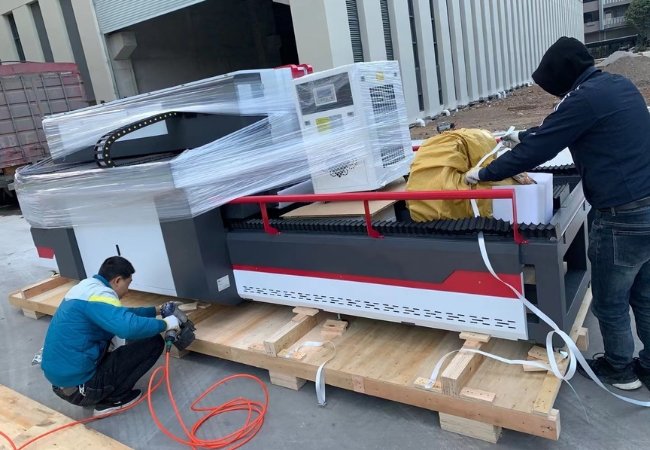

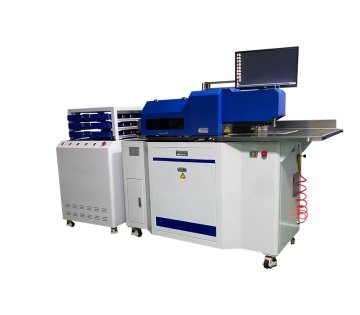

Yes, one 20″ GP container can hold one of our fixed laser path laser die cutting machines for wood and one fully automatic bender.
As an example, the service life of a laser tube is about 1.5-2 years for an 8-hour working day.
