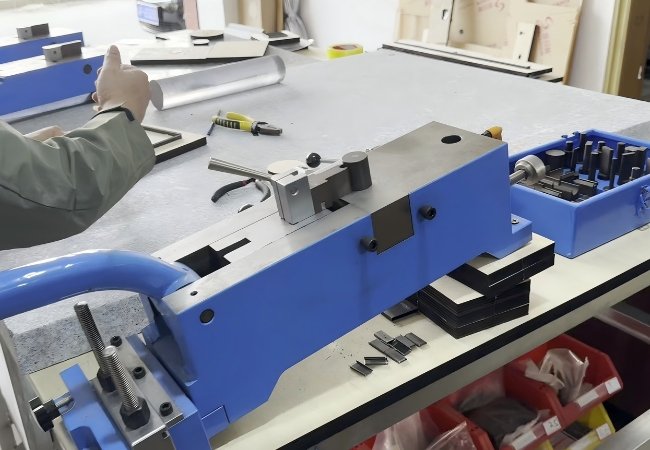

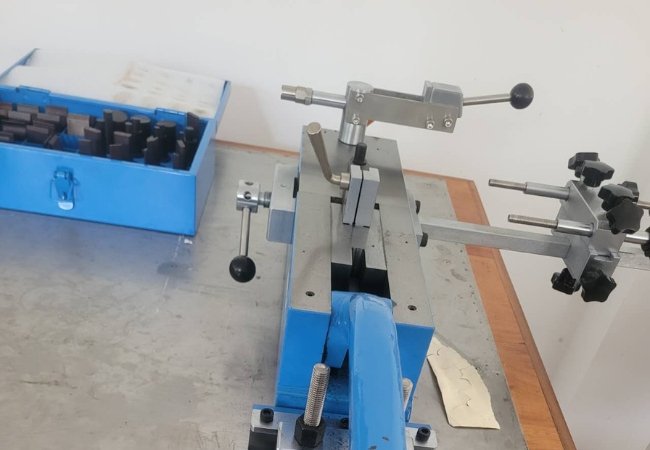

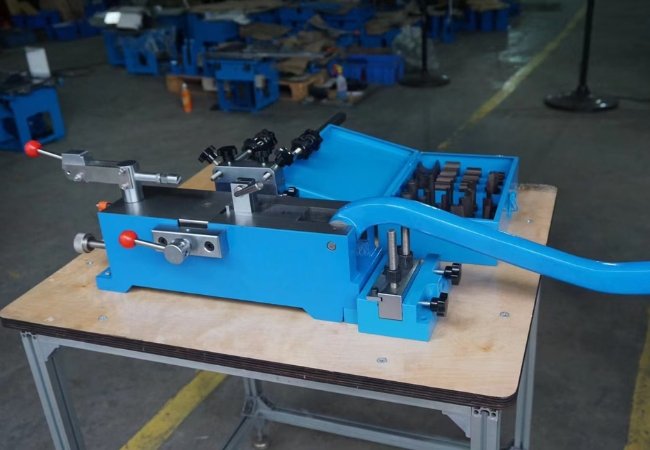

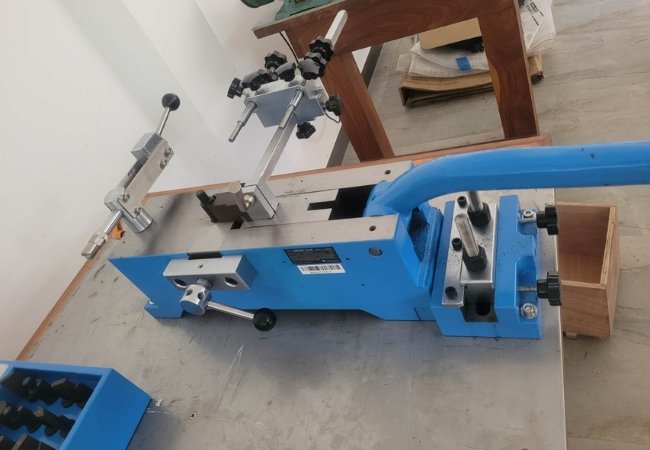

Manual Steel Rule Bender with 36 pcs Molds for Die-making Model: AL-201
There are many suppliers on the market who can produce this steel rule bending tool. But we are the first manufacturer to use this industrial blue color,original high quality manufacturer. What makes us different from other suppliers are the following features,
- Manual bender body and molds are made of high strength mold steel
- The surfaces of the molds are hardened so that they do not wear out easily.
- Bender body is coated with two coats of paint on the sides will not peel or rust in life time.
- The mounting surface of the mold has been milled twice by high-precision gantry milling, with an accuracy of ±0.03mm.

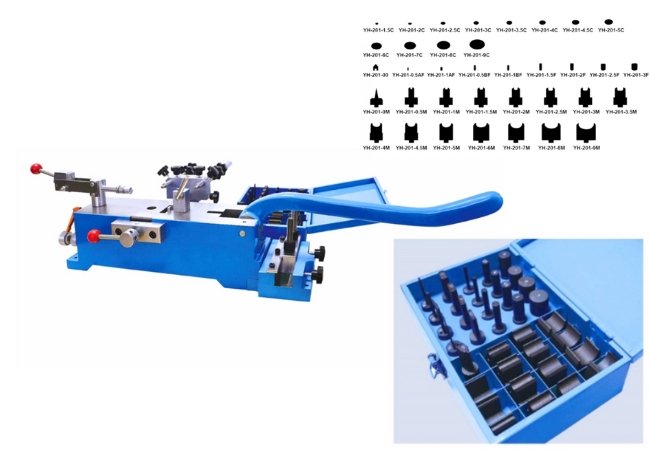

- 36 pieces mold designed for a variety of different angles and arcs to make sure you can bend die blades any shape you want.
- Datasheet
| Manual steel rule bender | |
| Model | AL-201 |
| Supported Rule Thickness | 0.45-0.71-1.05-1.42mm(1pt 2pt 3pt 4pt) |
| Supported Rule Height | 6-32mm(common size like 8,22.3,23.0,23.8mm) Cutomized size 50mm-100mm |
| Standard function | Steel rule bending |
| Tools Quantity(molds) | 36 pcs |
| Machine Size | 910x660x230mm |
| Net Weight | 51KG |
| Gross Weight | 60KG |
| Installation Method | Screwed to workbench |
Die-Making Related Products
Complete Guide
How to use this manual steel rule bender?
The use of this hand tool is usually done through the following steps,
- Checking the drawing for your die board making to confirm information such as straight lines length and angles on the drawing
- Using empirical judgment and dividing the drawing, select the appropriate mold for the angle and radius of the bend required.
- Put the mold on the manual steel rule bender and turn the handle to run the bending work manually.
- Please note that the distance between straight lines and angles and radio can be positioned by the locating screw rod.

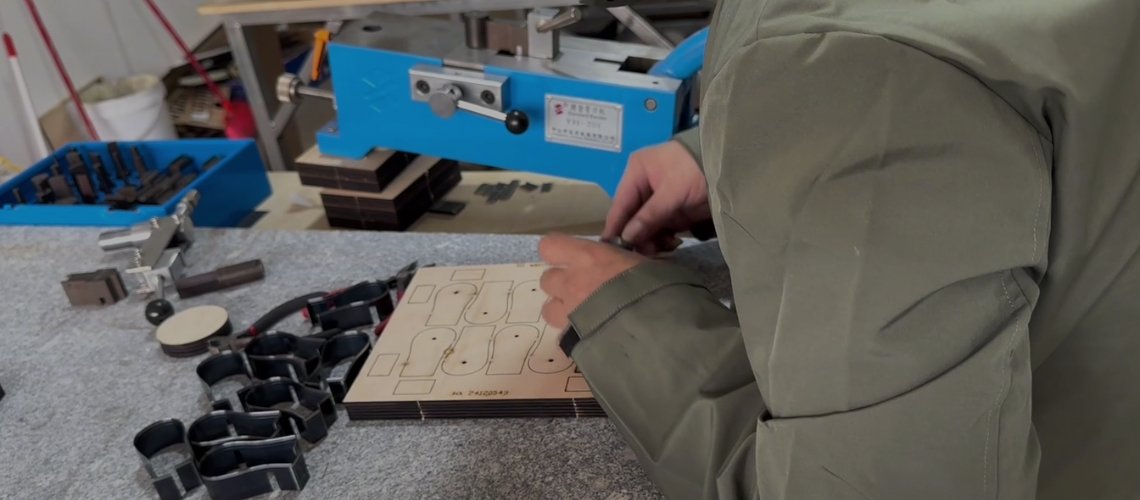

More details to use this tool,please check the operating video below:
Yes, the structure and molds height of this manual bending machine can be customized. We can customize this manual bender and molds for you to match the height of your steel rules. Attached a video below for your reference.
All of our hand tools come with a free Plywood package for international shipping standards.
Shipping costs require your address details for checking, please contact our sales team.
By the way, we can provide door to door service in over 20 countries worldwide.
There are only two routine maintenance tasks that need to be done on a daily basis
1. Clean the surface of debris and dust
2. Remove rust and oil the mounting surface (without painting part) Every three months
