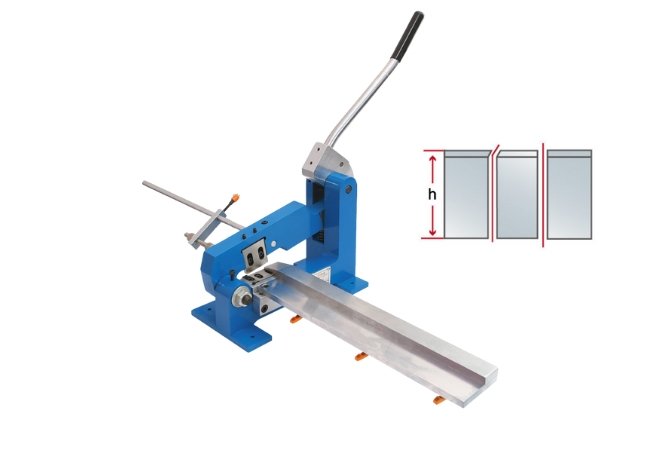

Manual Steel Rule Cutter with Single Side Lipping Model: AL-204
As one of the daily essential tools in the wood die-making industry, it has the following special features:
- Focus on steel rule straight cut with single-sided lipping
- Simple structure, very easy to replace cutting tools
- Highly adaptable, supports customization to matches different blades cutting heights from 8 to 100 mm
- The machine body is made of special steel, which is hard and rust-resistant.
- Low operating costs, Compared to automatic steel rule cutters, no electricity is required and the initial purchase cost is also low.
- Datasheet
| manual steel rule cutter | |
| Model | AL-204 |
| Supported Rule Thickness | 0.45mm(1pt)-0.71mm(2pt)-1.07mm(3pt) |
| Supported Rule Height | 8mm-100mm(customized) |
| Standard function | steel rule cut with single side lipping |

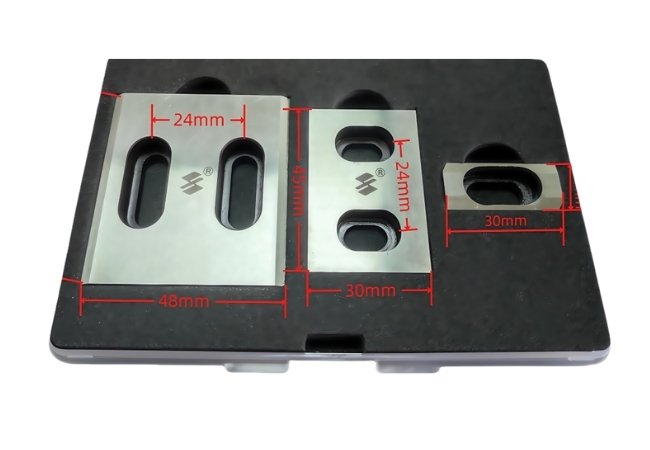

| Tools Quantity(molds) | 3 pcs(cutting and lipping molds) |
| Machine Size | 645x520x460mm |
| Package Size | 524×245×320mm |
| Net Weight | 25KG |
| Gross Weight | 27KG |
| Installation Method | Screwed to workbench |
Die-Making Related Products
Complete Guide
Key features and applications of manual die-making tools
The core features of manual die-cutting machines are their low cost, simple structure, operational flexibility, and strong adaptability to small batches and varied tasks, all driven by manual operation. For exsample,if you want to install a small piece of steel rule on the die boards, using a fully automatic bending machine requires importing an entire drawing to select and cut out the graphic. However, with manual tools (including manual steel rule bender and manual steel rule cutter), you can simply rely on your die-making experience to cut a section of the die-cutting steel rules, easily bend and cut it, and install it onto the die-cutting board. Key considerations for these manual die-making tools:
- Yes,you are only producing small batches dies and do not plan to purchase a fully automatic steel rule bending machine
- Yes,Only used for sample making and complex graphics dies making, fully automatic bending machine forming is difficult.
- Yes,These manual tools are mainly purchased for use with fully automatic bending machines as auxiliary tools and for correction purposes.

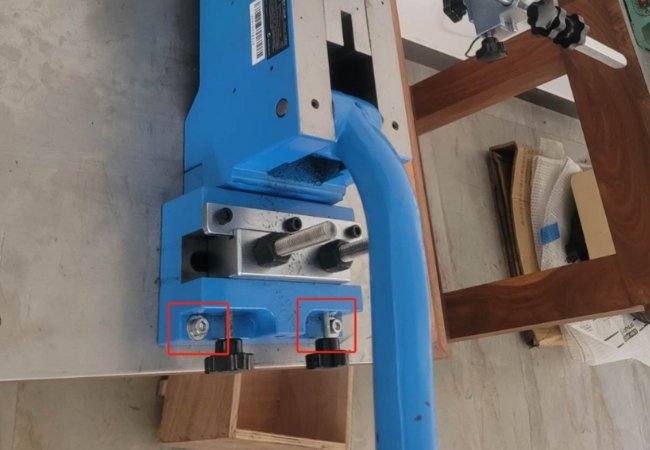

The entire body does not require any special installation. Simply attach the steel rule holder with screws.
We advanse that you prepare a workbench in advance and fix this device to the workbench with screws and nuts.
