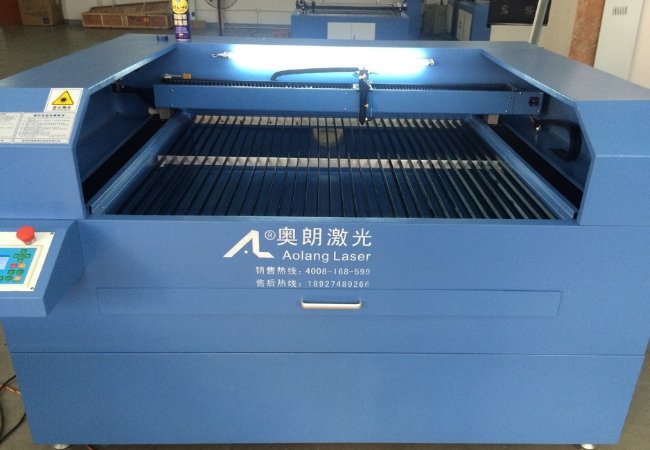

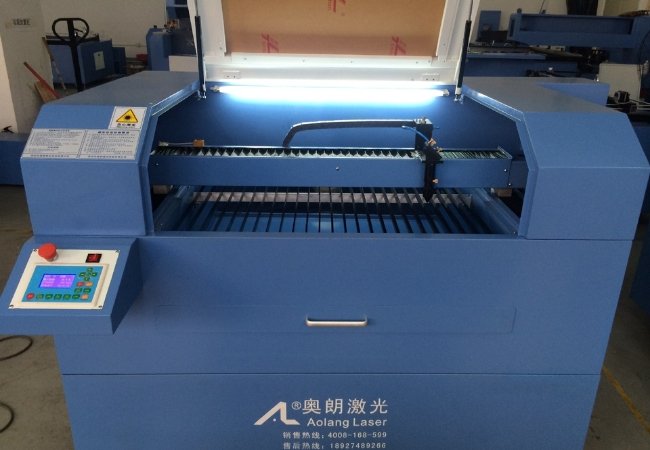

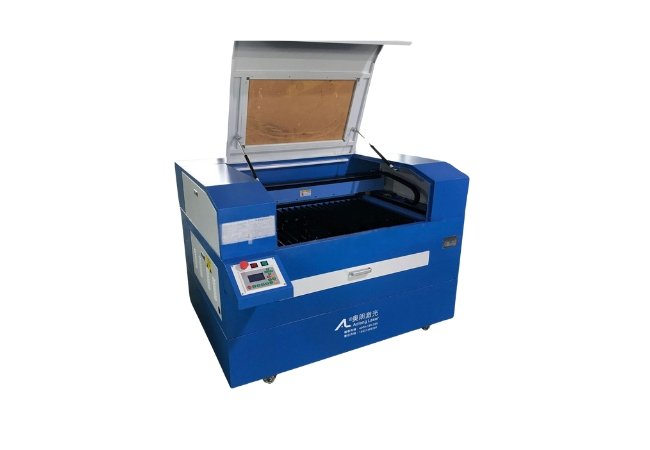

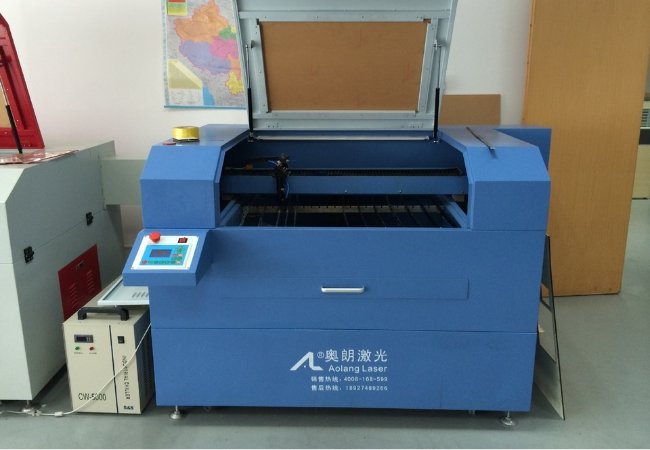

Laser die cutting machine for sticker label dies making
The PVC die board laser cutting machine can achieve a cutting accuracy of ±0.01mm, which can be used for the production of cutting dies for high-end labels.
- Specialized design for 6mm pvc/mdf die board cutting
- Servo motor with screw rod driving system ensure high cutting precision
- Control system supports any shape design (e.g. thin lines, curves, shaped patterns)
- Supports wide die-making graphic formats such as (AutoCAD, AI, etc.)

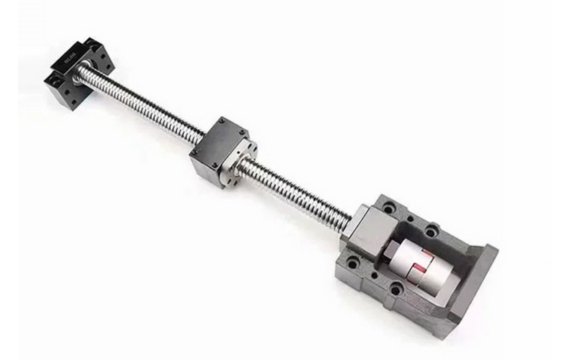

High precision screws drive
Compared with other ordinary CO2 laser cutting machines, AOLANG pvc/mdf die board laser cutting machine adopts high-precision screw with servo motor for transmission. It can guarantee the cutting speed and precision very well.

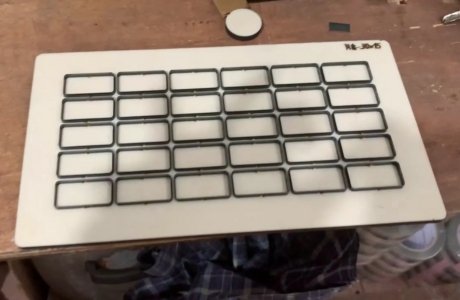

Moreover, the cutting precision required by the die board industry is high, and the cutting seam must be able to securely install 8mm steel rules. We have optimized the alignment of the machine to adapt to the installation of die cutting blades.

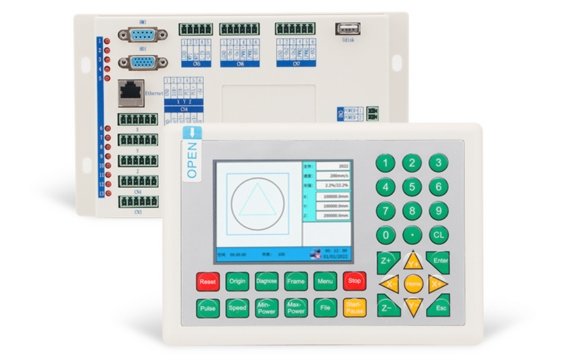

Best control system for dies laser cutting
Highly responsive laser cutting control system, the machine can be dually controlled by the control system of panel or computer.
And the system supports a wide range of die-cutting drawing formats. Common software such as AutoCAD, coreldraw, AI, etc. are all supported. And file format support is also very wide such as DXF; PLT; CDR; AI; Etc.

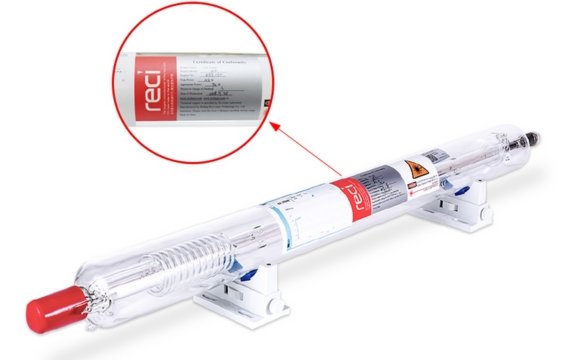

Name brand of laser tube
As one of the core components of the entire machine, the laser tube not only determines the cutting effect and speed of the machine. It also determines the cost consumption of the whole machine in the daily use.
AOLANG LASER pvc die board cutting machine adopts name brand laser tube. The theoretical life time of the laser tube is more than 10000 hours, normal use about 3 years without replacement. And we also provide reasonable warranty. If the laser tube has quality problems, we will provide a new laser tube free of charge.
- Data sheet
| 6mm pvc/mdf die board laser die cutting machine | |
| Machine Model | AL-9060-150S |
| Working Area | 900×600mm |
| Laser Power | Fully Enclosed Co2 Laser Tube 150W-180W |
| Laser Head | Manually ajustable laser head |
| Cutting Speed(6mm die board) | 42M/Hour |
| Cutting thickenss | 6mm PVC or Plywood die board |
| Laser Path | Fly Laser Path |
| Transmission System | Ball Screw Drive with Servo Motors |
| Control System | Aolang die cutting control system |
| RAM（Random Access Memory) | 16GB Supports Offline |
| Power supply | 220V/50HZ |
| Repeated Positioning Accuracy | ±0.03mm |
| Cooling Type | Water Cooling(Pure water, antifreeze in the winter) |
| Assisted Gas of the Laser Head | Compressed air (0.4-0.8Mpa) |
| Assisted Gas of the Laser Source | No need |
| Graphic Format Supported | CAD; PLT; CDR; AI;Etc |
What is the different between Aolang 6mm die board laser die cutting and common CO2 laser machine on the market?
The biggest difference is the motor and transmission method, the common CO2 laser cutting machine is generally used in the external or internal slide guide working with stepper motors. And AOLANG’s 6mm pvc/mdf die board laser cutting machine adopts ball screw drive with servo motor. So our sticker label dies cutting machine precision can be within 0.03mm. However the common CO2 laser cutting machine precision is usually only ±0.05mm. For pvc cutting dies production, the precision is far from enough,so regular Co2 laser cutting machine is not recommended for die boards cutting.
In addition to this, the sticker lables dies making industry generally cuts 6mm PVC boards, and the plastic cutting process generates corrosive smokes and gases. Therefore laser cutting machine for pvc die board cutting usually need thicker paint and lubrication protection to prevent the guide rail, screw rod and machine body anti-rusting. Our PVC/mdf die board cutting machines have protection treatment for the screw rod and guide rail, and the paint is twice as thick as the normal CO2 laser machine.
- Higher cutting precision
- Better anti-rust treatment
- For your better label dies making
AL-9060-150S 150W pvc/mdf die board laser cutting machine×1

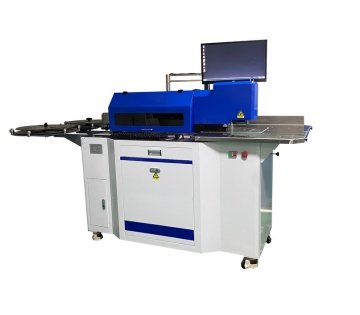

AL-910CH 8mm steel rule bending machine×1
And some other manual tools for 8mm steel rules
The theoretical lifetime of a laser tube is 10,000 hours. And if you work 8 hours a day, it has a lifetime of about 3.5 years.
We will provide 1 year warranty for the whole machine
And machine installation and training service is available if needed
No,it’s specialized for 6mm pvc/mdf die boards,and the 150W laser power is also not enough for 18/20mm thickness board cutting.
