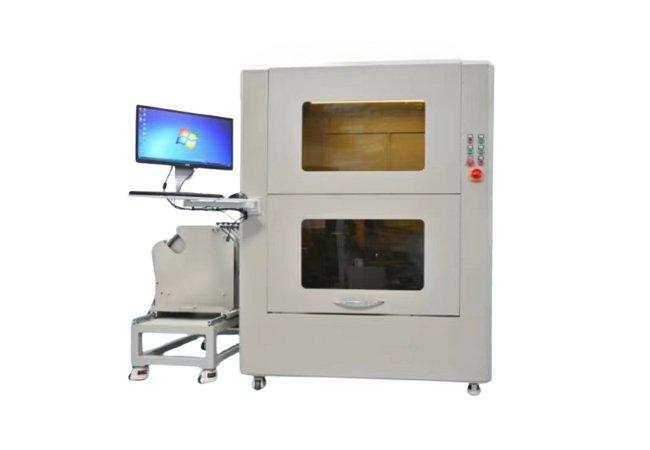

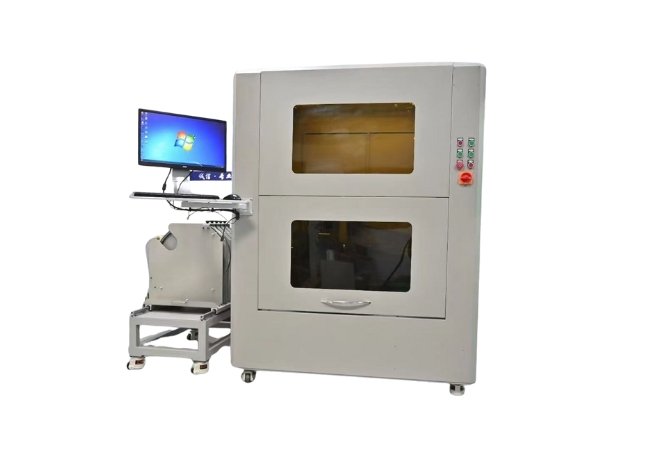

Rotary Steel Rule Bending Machine For Rotary Dies Making Industry Model: AL-R2280
If you are a rotary wood dies maker, then purchasing this machine is enough for all your steel rules bending and forming. The features and functions of this machine are as follows:
- The arc shaped blade and straight blade bending systems are combined into one machine, allowing you to freely switch between processing two different types of blades.
- The machine can automatically adjust the bending,bridging,bending mechanic device position, allowing for quick replacement of different diameter arc shape steel rules.
- Various bending molds and bridge molds can be customized to meet your different needs, such as bridge width, blade height, and thickness.
- Each workstation of the machine adopts a fully servo-driven transmission system, which ensures high bending efficiency, excellent results, and guaranteed precision. Additionally, the servo system offers exceptional stability.
- Datasheet
| Rotary steel rule bending machine | |
| Machine Model | AL-R2280 |
| Blade (thickness) | 4pt rotary steel rules |
| Steel Rule Radius Range | 220-800mm |
| Steel Rule Height Range | 24-27mm |
| Standard functions | Cutting,bending,bridging,lipping,bevel cut,perforating |
| Gas supported | 0.6-0.8Mpa compressor air |
| Voltage and Frequency | AC 220V 50Hz/60Hz(110V 60Hz) |
| Gross Power | 3 KW |
| Machine Size and Weight | 230CM*140CM*200CM 520KG |
| The best graphics formats | DXF/DWG/AL/CDR/PLT format |
Die-Making Related Products
Rotary Die Making Related Equipment

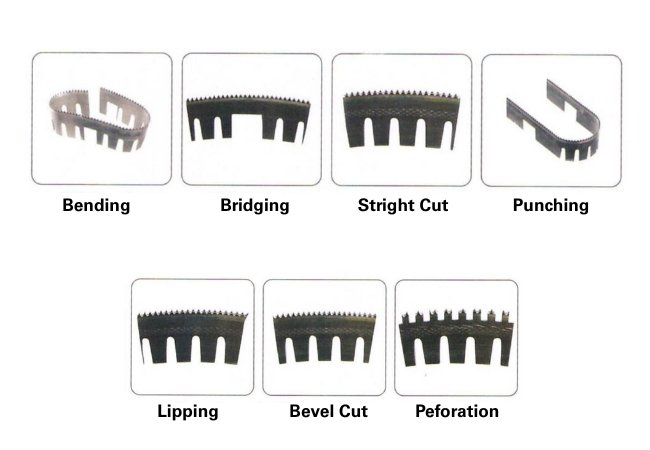

This machine includes almost all the functions you need to make rotary dies, so what exactly are the detailed functions it includes?

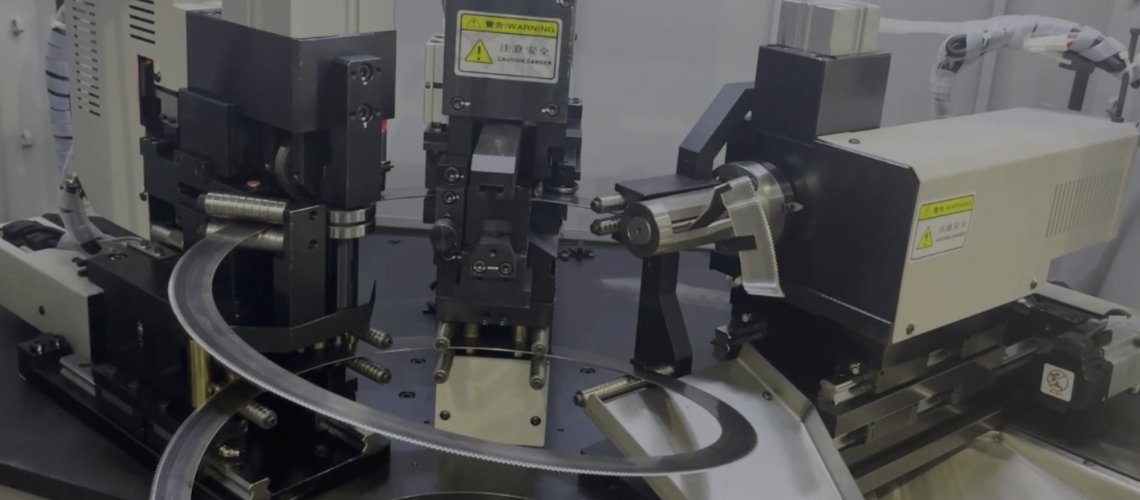

- AOLANG LASER‘s proprietary patented design combines bending and cutting into a single workstation, reducing the possibility of machine jams caused by conventional scissors cutting system. Furthermore, combining bending and cutting into a single workstation can also increase the efficiency of this rotary steel rule bending machine by approximately 50%.
- Unlike ordinary flat wood die making, the rotary wood die making may require both bevel edge cutting and straight cutting. Don’t worry, our machine includes both functions.
- For easy blades installation and attachment to your rotary die boards, this machine also supports common bridging functions. Furthermore, this machine can be customized for ultra-wide bridging or round hole punching functions.
- All die makers know that die blades used to make wood dies need to be bent and cut into many pieces by a bending machine. And then assembled and installed on the die boards. This may result in gaps between the blades connection. Our rotary steel rule bending machines have lipping function,all your worries will disappear.
- In addition, our machines also include an important perforating function. Typically, when making cutting dies for food and pharmaceutical packaging boxes that require easy tearing, the blades need to have intermittent punching capabilities to facilitate tearing of the boxes. And other kinds of cutting dies used for multi-part labels, such as movie tickets and coupons, need to be easy to tear so that customers and stores can keep them separately.
