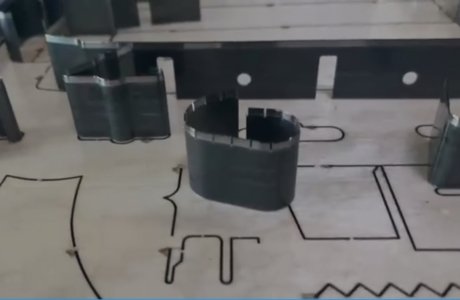

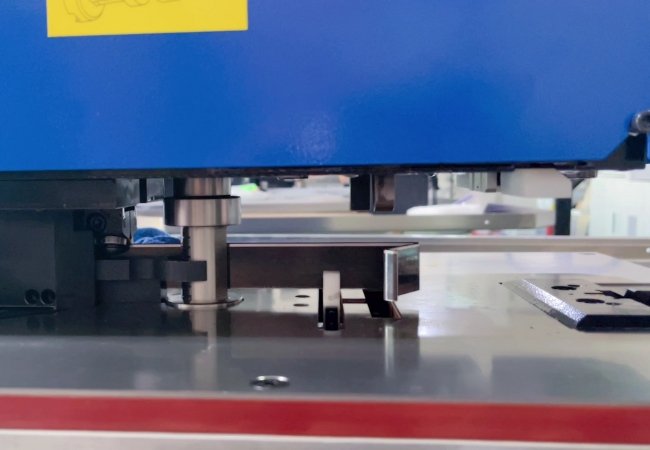

Steel Rule Die Bender with Nicking
Steel rule die bending machine is one of the necessary equipment for wood die-making industry.
- Fully automated CNC controlled by servo motor and drive
- Lower energy consumption and environmental savings
- Functionality can be customized according to your needs
- Door-to-door service in more than 100 countries worldwide

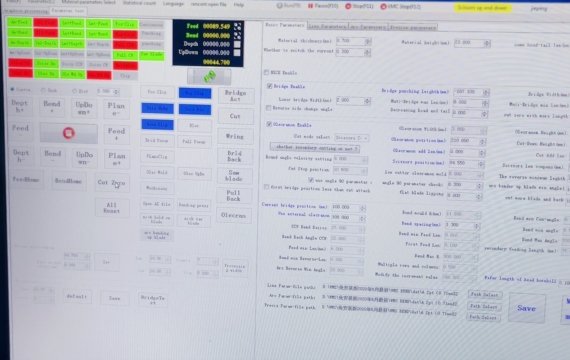

User-friendly Software Interface
Some buyers may worry that this machine is very complicated and difficult to learn how to use. However,I have to say AOLANG laser steel rule die bender interface design is simple and user-friendly. Usually the machine operator only need 2-3 hours of training to be able to use the machine skillfully.
Moreover, the control software interface is designed to be associated with built-in sensors, which allows real-time monitoring of any working movement of the machine. If any part of the machine has a problem, the software will promptly report the location of the problem, which will help the user to maintain and repair the machine quickly.
LASER and BENDER are a Perfect Match
AOLANG LASER, as a leading company in the die-making machinery industry. We has always been committed to providing high quality die-making equipment to die-makers or printing&packaging companies.

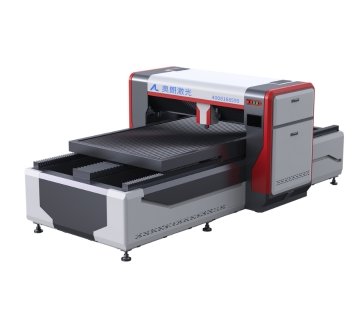

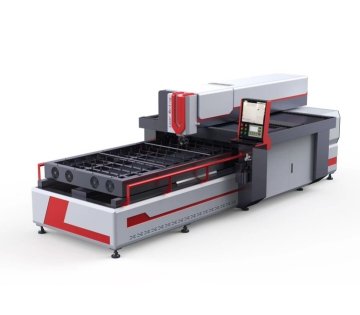

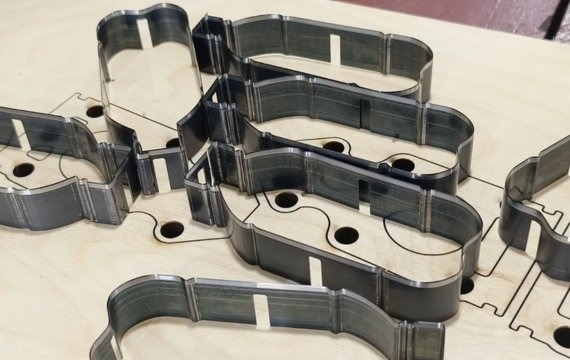

Our die making equipment consists of two main series, laser die cutting machines and automatic steel rule die bending machines. Only by purchasing both types of machines can you make die making easier. It is not just a simple doubling of efficiency, it is more than a 10 times increase in production efficiency of wood dies.

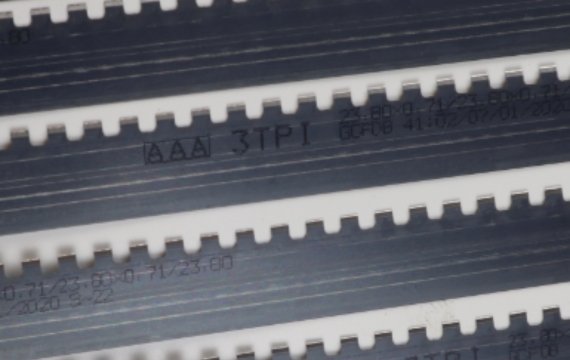

Additional Nicking Function
In fact, Nicking is an optional feature that some die-makers need and others don’t. This all depends on your die-making needs. Our steel rule die benders supports the addition or subtraction of any of these features.

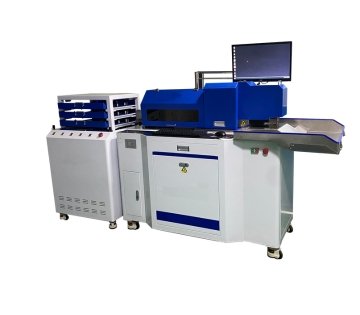

The Nicking function is generally performed by cutting and shaping with a motorized saw. Nicking forming process is different from perforation. Perforation is accomplished by punching through a tool(mold), which is much faster. If you need the perforation function, you can purchase our AL-32CN.

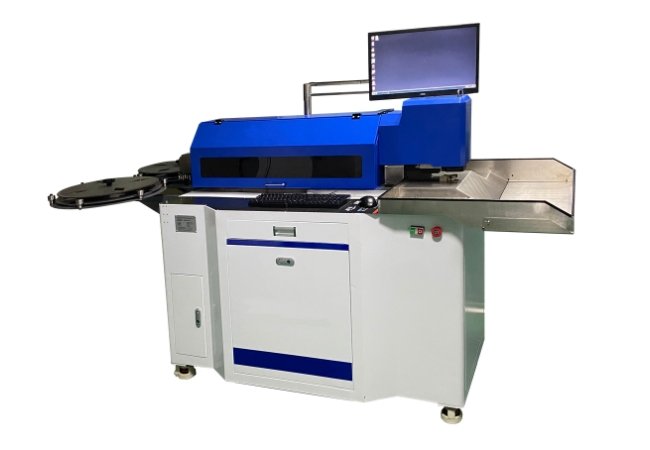

- Data sheet
| Steel rule bending machine | |

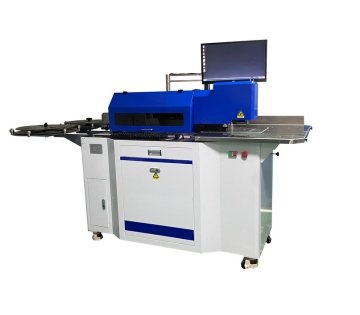

| Machine Model | AL-910CN |
| Blade (thickness) | 0.45-0.71-1.07mm(1pt 2pt 3pt) |
| Blade (height) | 20-32mm(common size like 22.3,23.3,23.8mm) |
| Max Bending R | 100° |
| Min R in 90° | 1 |
| Min U shape bending size | 5mm |
| Minimum bending size on front/back | 1.5-2mm depends on the blade thickness |
| Standard functions | Cutting,bending,bridging,lipping,nicking |
| Blade feeding accuracy | ±0.02mm |
| Bending Flatness | 0.2/100mm |
| The way of cut | Multi-purpose scissors. It can cut front and back scraps |
| Gas supported | 0.6-0.8Mpa compressor air |
| Voltage and Frequency | AC 220V 50Hz |
| Gross Power | 2.5 KW |
| Machine Size and Weight | 230CM*75CM*165CM 500KG |
| The best graphics formats | dxf.ai.dwg format |
Why do you need a steel rule die bender with nicking or perforation?

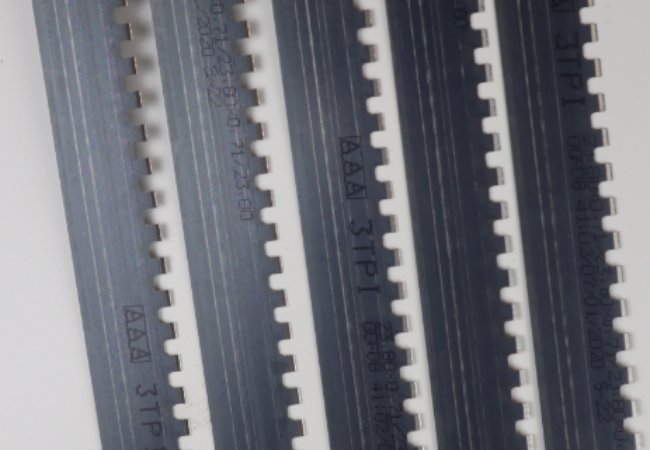

First of all, toothed/nicked steel rules have a toothed structure. When we use wood dies with nicking to cut some special materials. The toothed structure make it more easier to cut off. For example, in the die-cutting process, if the material is thick or elastic, the flat blade may not be easy to cut or easy to rebound after cutting.This will result in an untidy cut. But if you use a toothed wood-die, each tooth can gradually cut off the material, reducing the concentration of force. So that the cut seam will be more neat, prolonging the service life of your wood dies.
Second, the toothed wood dies are useful for some specific materials. For example, soft or flexible materials such as foam, tape, sponge. Flat blades cutting these materials may have sticking problems, but toothed knives can reduce the contact area and avoid the material sticking to the wood die, improving productivity. Also, for materials like corrugated cardboard, a toothed knife can cut through the fiber structure more easily, keeping the cut flat and reducing burrs.
What’s more, some industries use toothed wood dies to help with chip/wastes removal. Chips are generated during the cutting process can interfere with the cut if they stack up. So the gap between the teeth may help dislodge the chips and keep the cutting process stable. In addition, different tooth widths and densities may be adapted to different material requirements. For example, wider tooth spacing is suitable for thick materials and narrow tooth spacing is suitable for accurate stuffs cuts which need to be selected on a case-by-case basis.
The fact that it finishes the work with a certain angle and radian error. So finished steel rules usually needs to be corrected by manual die-making tools. You can also choose some essential manual die-making tools FROM AOLANG LASER.
It has a theoretical life of 6-8 years, during which time it will need to be replaced with necessary consumables such as bending tools, bridging tools, and so on.
Usually the price of a bender will be related to a few dimensions:
Good or bad service
The quality of the materials and components used in the machine
Brand value
AOLANG laser is Top 3 die laser and steel rule bender manufacturer in China. Choose us,my team will hold your back.
