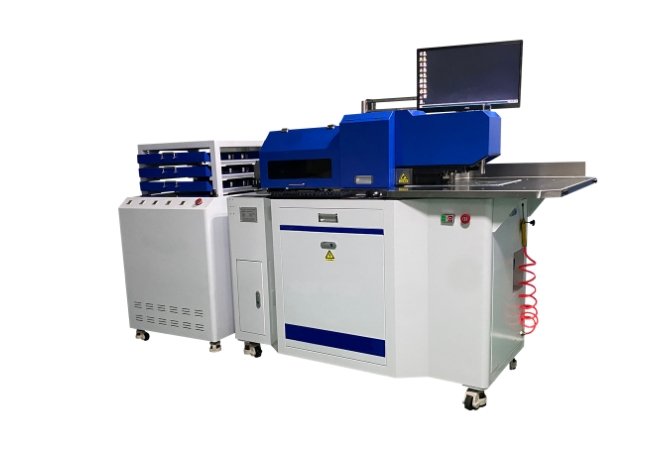

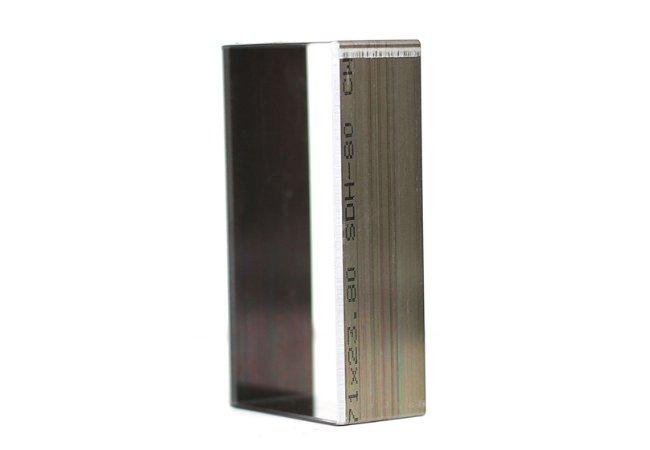

Advanced Steel Rule Die Bending Machine

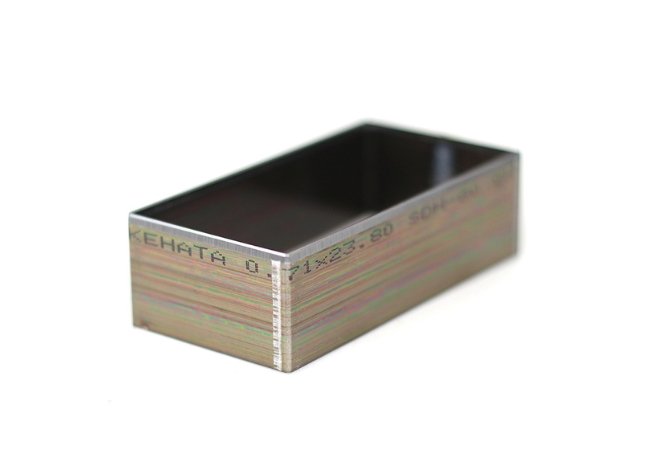

This machine is a high class steel rule bending machine with broaching function for better large angle bending.
- With nicking and broaching function as standard.
- Bend large angles than 90° with out crack
- Fully automatic bending process no need manual intervention
- Perforating and Holes punching is available according to your requirement

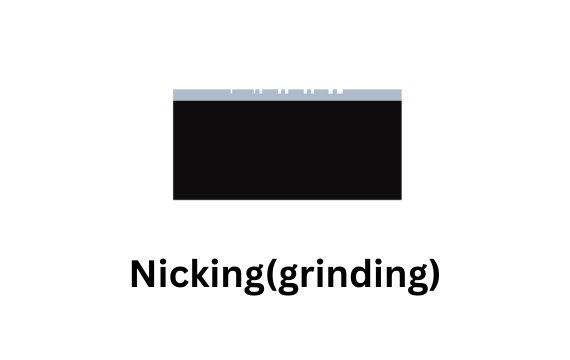

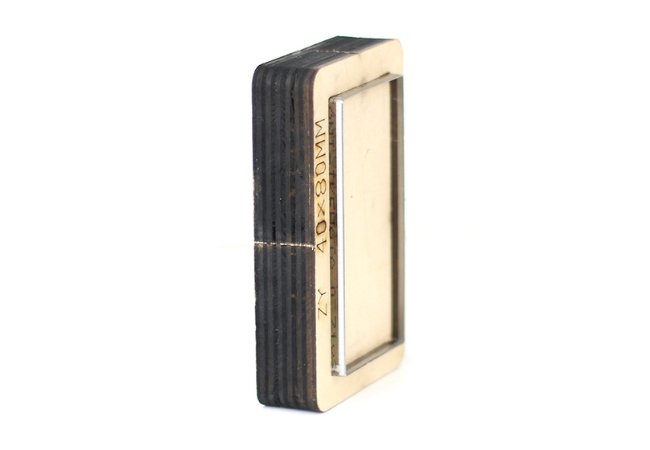

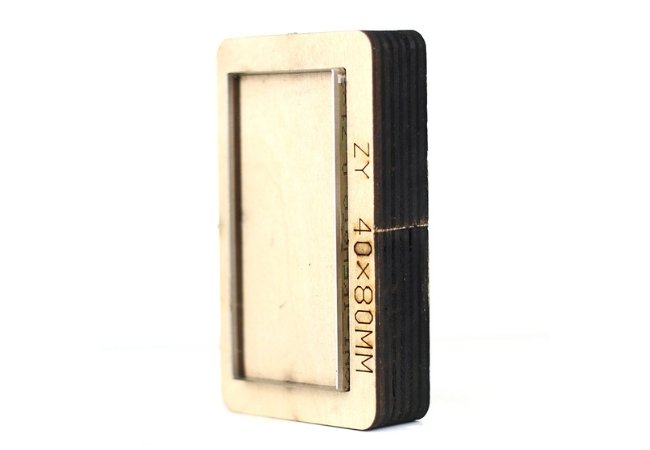

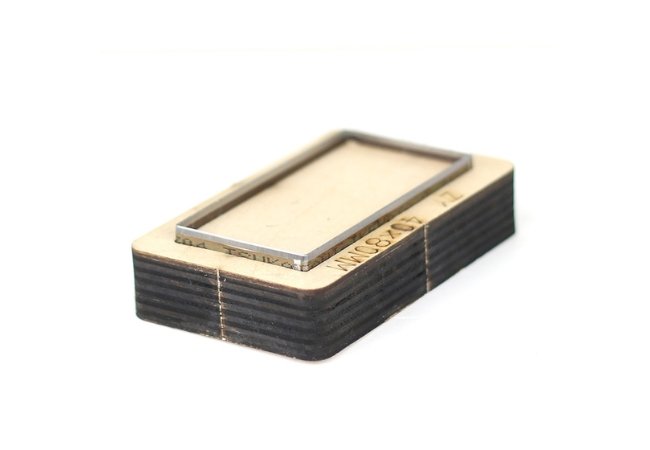

Added nicking functionality
In the die-making industry,many types of cutting dies need to use the steel rule with nicking, the die board with nicking has following features and advantages.
Layered cutting: layered processing of multi-layered materials (such as composites, foam pads), nicking can control the cutting depth of each layer to ensure uniformity of layering and avoid excessive cutting.
Reducing burrs: When cutting hard materials (e.g. foils, plastic sheets), nicking reduces edge burrs and improves the smoothness of the finished product.
In addition, nicking improves the life span of the cutting dies, based on the following principles,
Distribute pressure: nicking distributes the cutting pressure to multiple tiny cuts, reducing localized tool wear and prolonging die life.

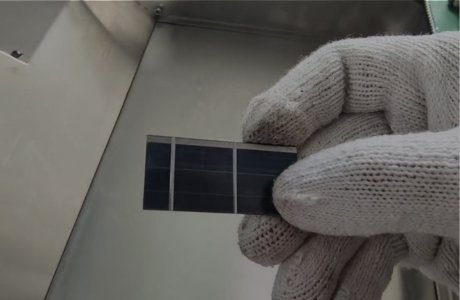

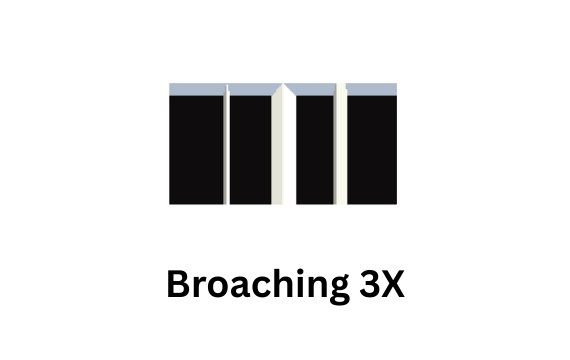

There are 3 sets of broaching with the bender
Broaching, as a high-end function of steel rule die bending machine, is mainly used to make it easier to shape the steel rule at a large angle by broaching part of the material on the one side of the steel rule.
If without broaching, a standard steel rule bender can only form angles of about 100°, and the minimum chamfer radius of the angle is 1mm R. If the angle is bent over 100°, the inner corner of the angle may crack due to material buildup. With broaching, bending angles of up to 160° are possible with a much lower chamfer radius.

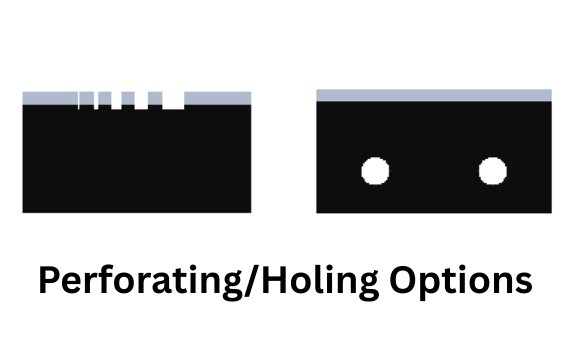

Perforating and Holes Punching are Available
Perforating is mainly used for steel rule making teeth. In some die cutting applications where a tear-off cut is required, the serrated edge can be used to cut the material progressively. Making it suitable for applications where a tear-off effect is required, or where a half-break is required (e.g. corrugated cardboard, rubber sheets).
In addition, the teeth can also be used to cut thick material. The serrated design distributes the pressure and saves effort when cutting thick materials (e.g. leather, rubber mats).
As for the holes punching function, it is mainly used for the production of the cutting dies for waste removal. More details, please check our die-making technology sharing page.
- Data sheet
| Steel rule die bending machine | |
| Machine Model | AL-32CN PRO |
| Blade (thickness) | 0.45-0.71-1.05mm(1pt 2pt 3pt) |
| Blade (height) | 20-32mm(common size like 22.3,23.3,23.8mm) |
| Max Bending R | 160°(after broaching) |
| Min R in 90° | 0.5 |
| Min U shape bending size | 5mm |
| Minimum bending size on front/back | 1.5-2mm depends on the blade thickness |
| Standard functions | Cutting,bending,bridging,lipping,Nicking,Broaching(Perforating,Hole Option) |
| Blade feeding accuracy | ±0.02mm |
| Bending Flatness | 0.2/100mm |
| The way of cut | Bending and Cutting at one Rotary Rod |
| Gas supported | 0.6-0.8Mpa compressor air |
| Voltage and Frequency | AC 220V 50Hz |
| Gross Power | 2KW |
| Machine Size and Weight | 230CM*75CM*165CM 520KG |
| The best graphics formats | dxf.ai.dwg format |
The modular design of this steel rule die bending machine gives it even more possibilities！
All the functions of this machine are modularized into a total of 6 work stations. The basic functions include bridging, lipping, straight cutting, perforating, and two additional groups of work stations for nicking and broaching. These work stations can be replaced or combined as you like. If you need the punching hose function but no need the perforating function, we can modify and customize this work station to be perforating.
So Before buy our advanced version steel rule die bending machine ,please confirm what are the exact advanced functions you need except for basic functions bending,lipping, bridging,and cutting. bridging,and cutting. Emmm,you still no idea about this? Just leave message to us or call us directly. Our technician team will guide you to choose the best one match your die-making requirements.

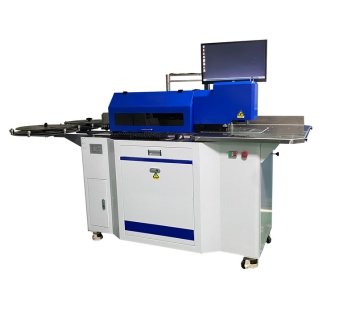

Although we recommend our entry-level AL-910C for new die-makers. But this machine AL-32CN PRO is also ideal for new die-makers,if you have enough budget and want more advanced features.
We recommend you to buy this machine in the following three reasons.
1. your old machine is getting old and needs to be replaced.
2. your order volume is growing fast and one machine is not enough to fulfill the die-making production.
3. Your old machine has fewer functions, only basic functions, you need to use more advanced functions.
Yes,
- We will packing it with standard import and export package(plywood crates with foam)
- Door to door shipping service to most countries. Contact us for shipping details
Yes,we provide English manual,operation videos to guide you how to use this machine
And engineer for machine installation and training is also available.
