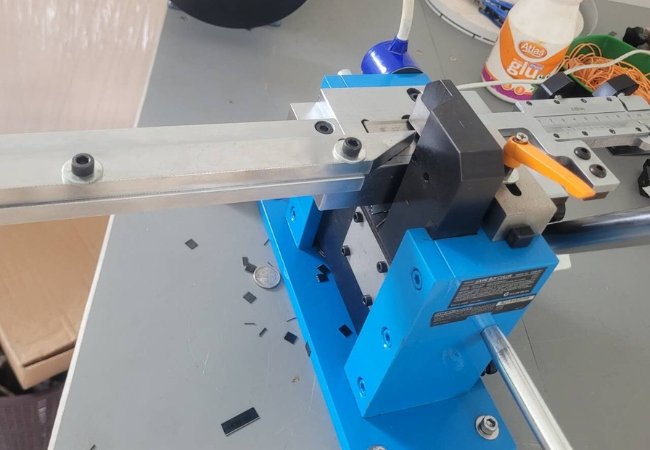

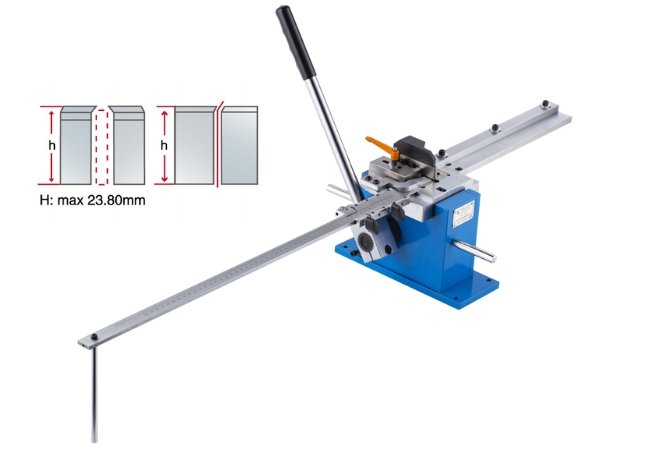

Steel Rule Manual Cutter with Double Side Lipping Model: AL-202
Compared to standard single-side lipping steel rule manual cutters, the AL-203 manual steel rule cutter is more precise.
- It is equipped with a measuring ruler that measures the length of the steel rule, allowing you to cut the steel rules to the exact length you want.
- Additional molds can be customized to enable this manual cutter to cut 0.45×8mm label steel rules.
- The lipping molds’ angle and size can be customized depending on the blade type. The standard configuration is 42° to match the long bevel blade.
- Cutting and lipping molds are solid enough, and their surfaces are hardened to prevent wear.
- Datasheet
| steel rule manual cutter | |
| Model | AL-202 |
| Supported Rule Thickness | 0.45mm(1pt)-0.71mm(2pt)-1.07mm(3pt) |
| Supported Rule Height | 8mm-32mm |
| Standard function | steel rule cut with lipping |
| Tools Quantity(molds) | 3 pcs(cutting and lipping molds) Standard 42° lipping mold matches long bevel steel rule |
| Machine Size | 720x210x290mm |
| Package Size | 760×250×305mm |
| Net Weight | 25KG |
| Gross Weight | 28KG |
| Installation Method | Screwed to workbench |
Die-Maker Related Products
Complete Guide
What size of lipping molds are available? How can I make choice?
As we all know, most of die-makers on the market are using long bevel steel rule to making cutting dies. Therefore, our standard configuration is a 42° lipping cut mold for long bevel steel rules with a cutting edge angle of 42°, which meets the daily needs of most customers.
The specific shape is shown as picture below.
Additionally, if you are using short bevel blades with a cutting edge angle of 30°, you will need to select the 30° short bevel lipping mold separately, as the picture below.
Lipping mold matches short bevel with 52° cutting edge angle is also available. If you require a 52° short bevel lipping mold, please also communicate with our sales team in advance to arrange for customization.
You need to select an 8mm/9.5mm pad strip to make the steel rule manual cutter can cut 8mm/9.5mm steel rule.
