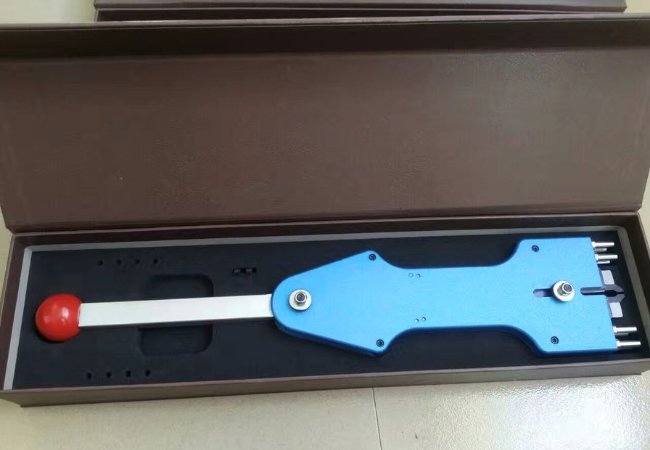

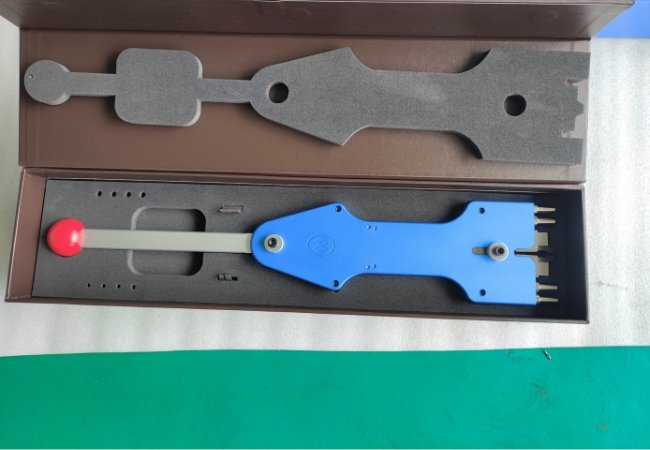

Steel Rule Puller of Die-Making Model: AL-212
Traditional steel rule replacement on the die board mainly rely on pliers to manually pull out the steel rules for cutting dies adjustment and cutting dies repairing. With this tool, everything becomes much simpler.
- Highly customizable, allowing you to customize different clamping molds based on the height and thickness of your daily use steel rules.

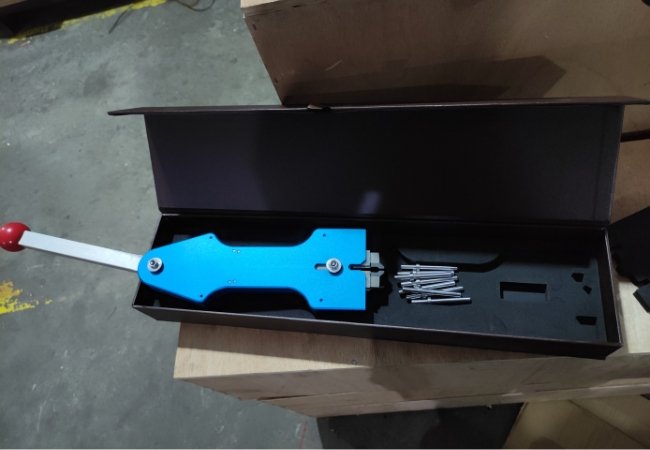

- To match this, support pins of different heights can also be customized to match the height of the steel rules.
- Traditional steel rule removal method that manually pulling out the blade with pliers, the sharp steel rule bevel may hurt your hands. This tool effectively prevents this kind of accidents.
- The steel rule’s clamping molds are precision machined by CNC technology to ensure the flatness of the clamping surface and the verticality after clamping.

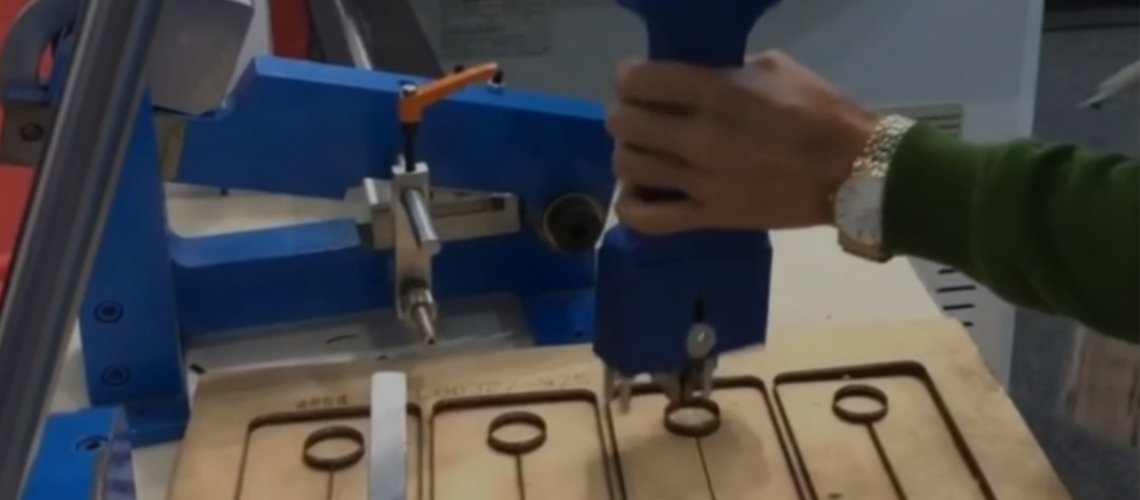

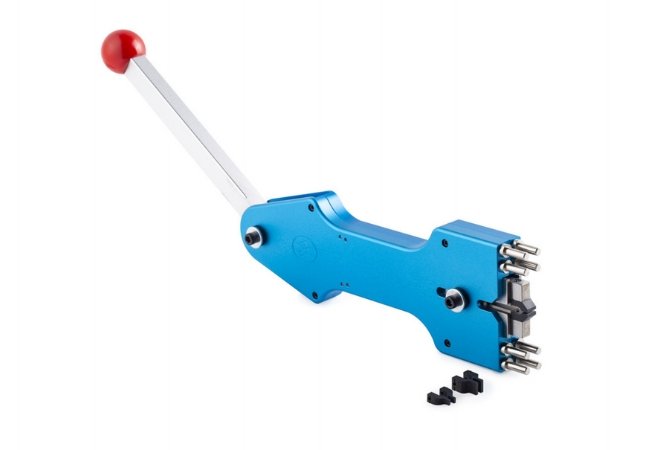

- The overall structure is based on the principle of leverage. It allowing the steel rules to be manually pulled out using the upper connecting rod, which is relatively effortless.
- Datasheet
| Steel rule puller | |
| Model | AL-212 |
| Supported Rule Thickness | 0.45mm(1pt)-0.71mm(2pt)-1.07mm(3pt)-1.42mm(4pt) |
| Supported Rule Height | 8mm-100mm(customized) |
| Standard function | Pulling the steel rule out from the die board |
| Tools Quantity(molds) | 2 pcs(clamping molds) |
| Machine Size | 26x98x490mm |
| Package Size | 600×170×120mm |
| Net Weight | 1.5KG |
| Gross Weight | 3KG |
Die-Maker Related Products
Special Die-Making
If I usually use 50mm, 60mm, and 100mm height steel rules, is this steel rule puller suitable?
Our standard clamping mold supports the removal of blades with a height of approximately 20 mm,like the most common steel rule height 23.8×2pt. But it is highly customizable and can support different steel rule heights by simply replacing the clamping mold and support pins. Please contact us to discuss the steel rule height and thickness you use most often, and we will customize the clamping molds for you.
In addition, we can customize a complete set of manual tools for knife mold production according to your needs. For example, our American customer Mr.Carlos uses a 60mm-high steel rules to make cutting dies, so we customized a 60mm-high steel rule manual bending machine, a 60mm steel rule manual cutting machine, a 60mm steel rule manual horizontal bridge machine, and a 60mm steel rule manual steel rule puller for him.
